NPN

GQ5-FG1MN

GQ5-FF1MN

GQ5-SG1000N

GQ5-SK150N

PNP

GQ5-FG1MP

GQ5-FF1MP

GQ5-SG1000P

GQ5-SK150P

light source

Red light

Square red light

Red light

Linear red light

Testing method

Diffuse reflection

Diffuse reflection background setting

Sensing Distance

1m

1m

1m

150mm

Supply voltage

12～24VDC±10%

indicator light

Daltic values (4 digits green light emitting diodes) and current values (4 digits of red light emitting diode), current value range: 0-999999

Delay function

ond, oFFd, and tOFF, delay range: 0 ～ 9999 milliseconds.

Consumption Current

Below 45mA

Output state

Light-ON/Dark-ON

Protection circuit

Short circuit, anti -polarity, overcurrent

Reaction time

Below 1.5ms

Ambient temperature range

Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation)

Ambient humidity range

Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)

Ambient illumination

1,000 lx max. with fluorescent light on the surface of the receiver

withstand voltage

AC1000V 1 minute of all power connection terminals and short circuit protection between the shell

Insulation resistance

more than 20MΩ

Vibration resistance

Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions

Shock resistance

Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions

Material

Cover：ABS、Display cover: PC

Degree of protection

IP65

cable

Φ4*4-core PVC cable 2m

Weight

Approx.50g

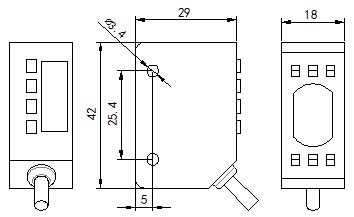

Dimensions

Output circuit
