Relay output

GQ6-FG1MR

GQ6-FG2MR

GQ6-MG9MR

GQ6-TG20MR

GQ6-TG40MR

light source

624nm red light

Testing method

Diffuse reflection

Mirror reflection

Shooting

Sensing Distance

1m

2.5m

9m

20m

40m

Supply voltage

AC24-240V/DC24-240V

Consumption Current

Below 45mA

Output state

Light-ON/Dark-ON

Protection circuit

Short circuit, anti -polarity, overcurrent

Reaction time

Below 30ms

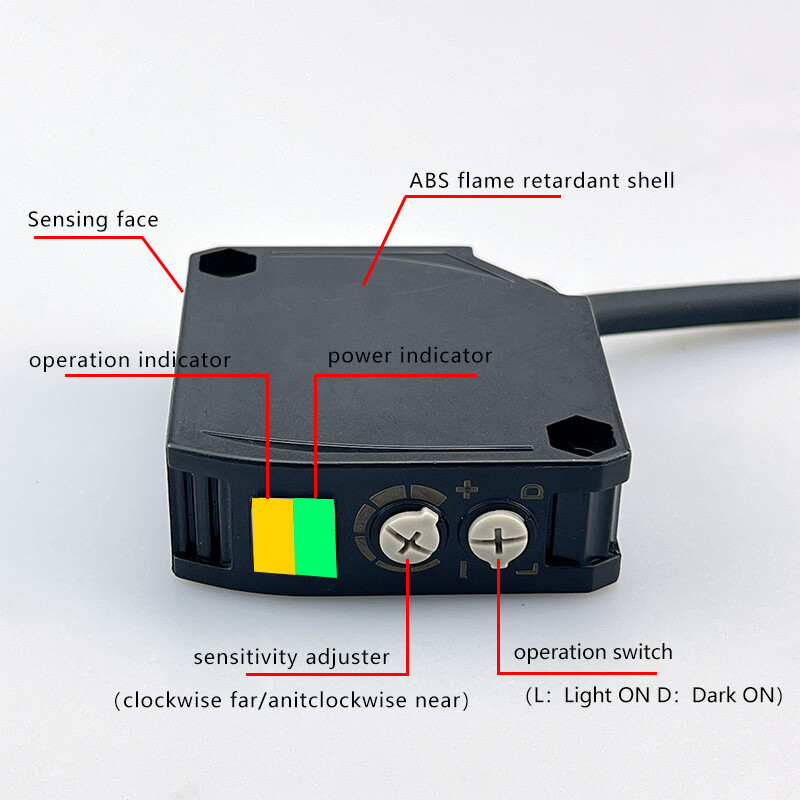

indicator light

Yellow LED (lights up when illuminated)

Ambient temperature range

Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation)

Ambient humidity range

Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)

Ambient illumination

1,000 lx max. with fluorescent light on the surface of the receiver

withstand voltage

AC1000V 1 minute of all power connection terminals and short circuit protection between the shell

Insulation resistance

more than 20MΩ

Vibration resistance

Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions

Shock resistance

Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions

Material

Cover：ABS、Display cover: PC

Degree of protection

IP65

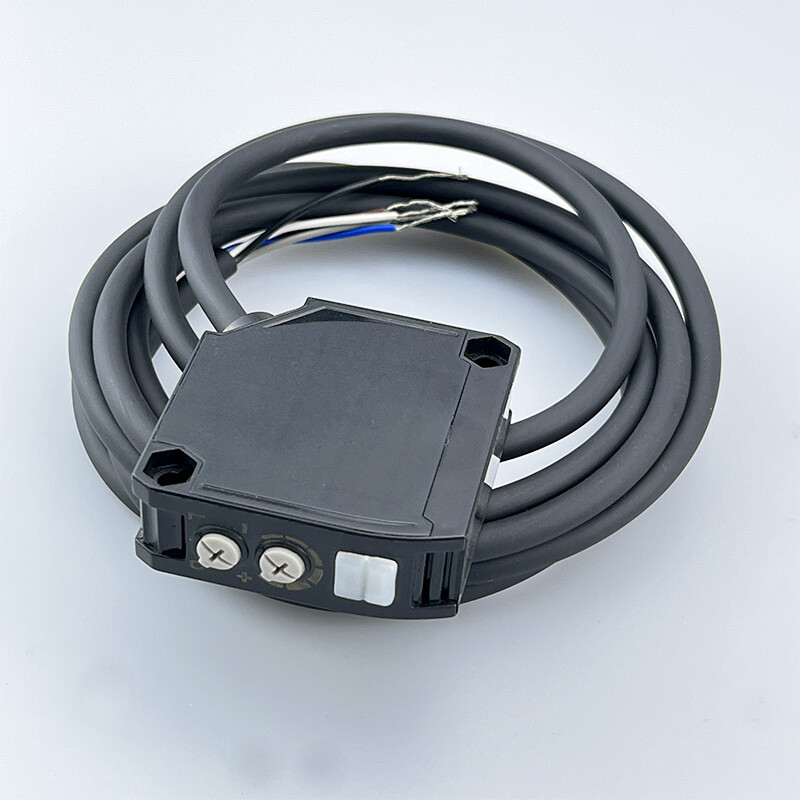

cable

Φ4*4-core PVC cable 2m

Weight

Approx.180g

Approx.310g

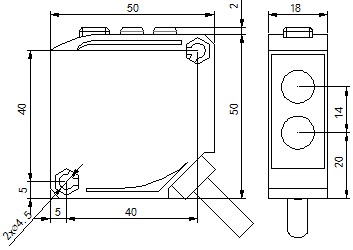

Dimensions

Output circuit
