Square photoelectric sensor

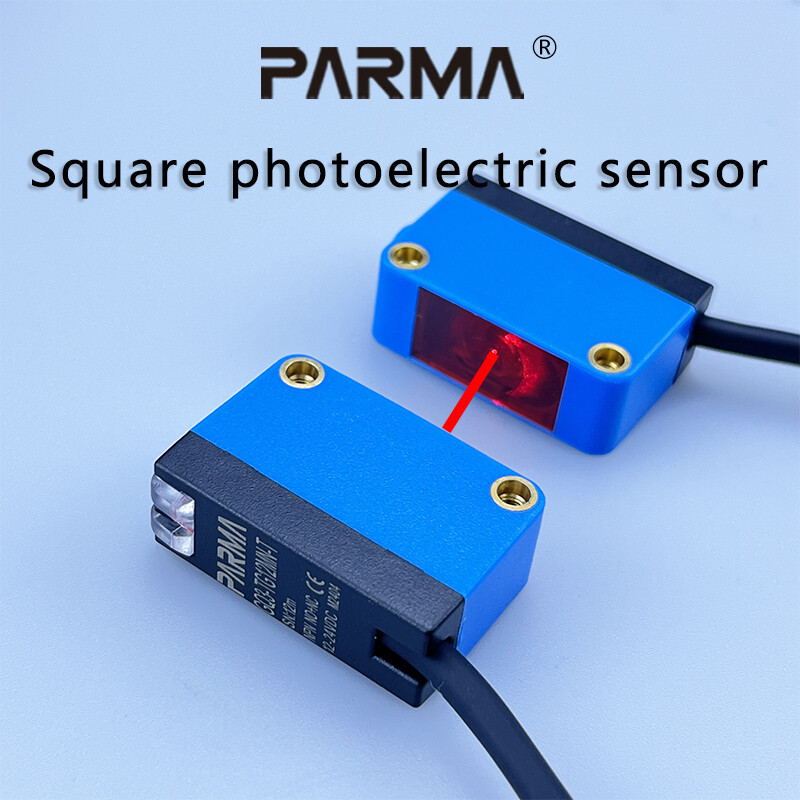

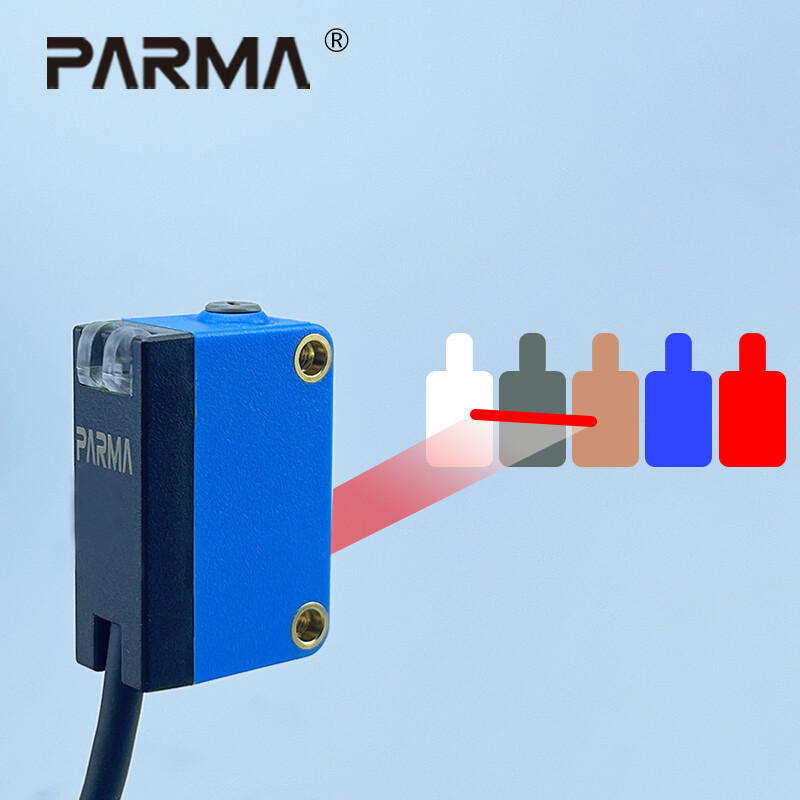

GQ3 Photoelectric sensor
Juncheng Intelligence is a high-tech enterprise focusing on sensor research and development, production and sales, located in Goldman Sachs Science Park, Dongguan City, Guangdong Province. After years of development and accumulation, we have become an influential intelligent sensor solution provider, with color sensors, laser sensors, photoelectric sensors, ultrasonic sensors, fiber optic sensors, safety light curtains, encoders and other products as the main products. The products are widely used in food packaging, paper printing, cosmetics, pharmaceutical industry, electronic semiconductors, woodworking machinery, warehousing and logistics, automobiles, steel and other industries.
Since its establishment, Juncheng Intelligence has maintained long-term strategic cooperation with many scientific research institutes and has accumulated a group of experienced R&D personnel to create various sensor solutions for industrial automation. From product development to after-sales service, Juncheng has always been committed to using rich industry experience and professional technology to create the best sensor products and solutions.
Contact Us

MAIN PRODUCTS

GQ3 Standard Series

Output

Model

NPN

GQ3-FR100N

GQ3-FG100N

GQ3-FG1MN

GQ3-MG3MN

GQ3-HM2MN

GQ3-TG12MN

PNP

GQ3-FR100P

GQ3-FG100P

GQ3-FG1MP

GQ3-MG3MP

GQ3-HM2MP

GQ3-TG12MP

light source

860nm infrared light

630nm red light

Testing method

Diffuse reflection

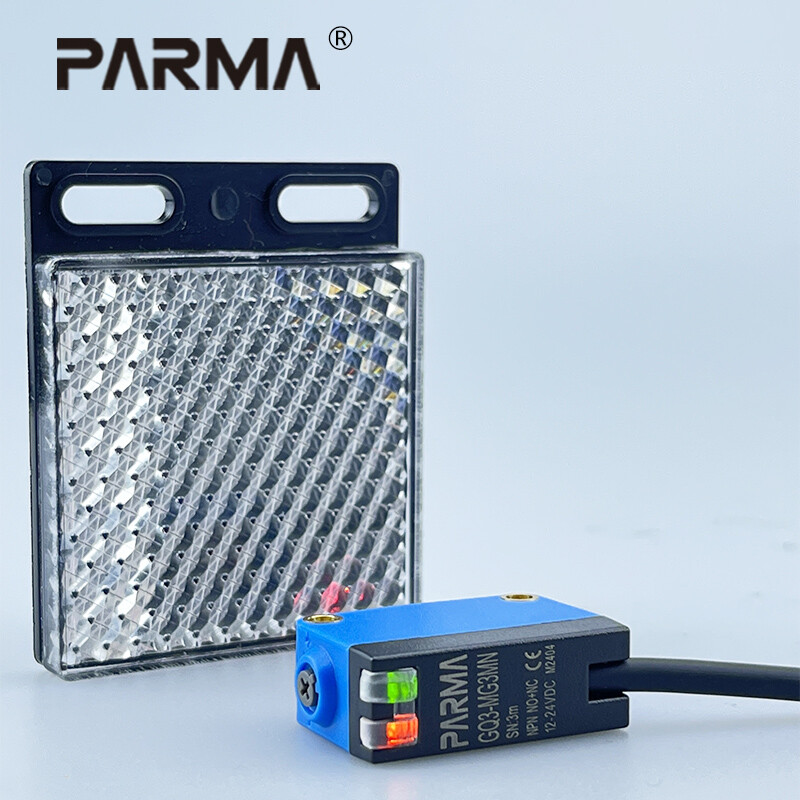

Mirror reflection

Detecting transparent objects

Shooting

Sensing Distance

5-100mm

5-100mm

20-1000mm

20-3000mm

20-3000mm

10-12000mm

Supply voltage

1224VDC±10%

Consumption Current

Below 45mA

Output state

Light-ON/Dark-ON

Protection circuit

Short circuit, anti -polarity, overcurrent

Reaction time

Below 1.5ms

indicator light

Yellow LED (lights up when illuminated)

Ambient temperature range

Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation)

Ambient humidity range

Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)

Ambient illumination

1,000 lx max. with fluorescent light on the surface of the receiver

withstand voltage

AC1000V 1 minute of all power connection terminals and short circuit protection between the shell

Insulation resistance

more than 20MΩ

Vibration resistance

Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions

Shock resistance

Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions

Material

CoverABSDisplay cover: PC

Degree of protection

IP65

cable

Φ4*4-core PVC cable 2m

Weight

Approx.40g

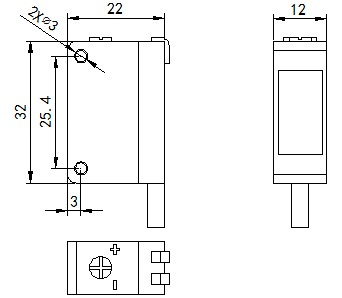

Dimensions

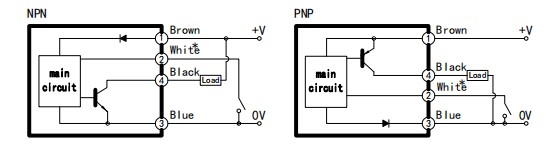

Output circuit







GQ3 Red Light Background Suppression Series

Output

Model

NPN

GQ3-BG50N

GQ3-BG100N

GQ3-BG300N

GQ3-BK100N

PNP

GQ3-BG50P

GQ3-BG100P

GQ3-BG300P

GQ3-BK100P

light source

630nm red light

630nm linear red light

Testing method

Diffuse reflection (background suppression)

Sensing Distance

5-50mm

15-100mm

20-300mm

15-100mm

Supply voltage

1224VDC±10%

Consumption Current

Below 45mA

Output state

Light-ON/Dark-ON

Protection circuit

Short circuit, anti -polarity, overcurrent

Reaction time

Below 1.5ms

indicator light

Yellow LED (lights up when illuminated)

Ambient temperature range

Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation)

Ambient humidity range

Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)

Ambient illumination

1,000 lx max. with fluorescent light on the surface of the receiver

withstand voltage

AC1000V 1 minute of all power connection terminals and short circuit protection between the shell

Insulation resistance

more than 20MΩ

Vibration resistance

Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions

Shock resistance

Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions

Material

CoverABS、Display cover: PC

Degree of protection

IP65

cable

Φ4*4-core PVC cable 2m

Weight

Approx.40g

Dimensions


Output circuit



GQ3 Infrared Background Suppression Series

Output

Model

NPN

GQ3-BR150N

GQ3-BR300N

GQ3-BE150N

PNP

GQ3-BR150P

GQ3-BR300P

GQ3-BE150P

light source

860nm infrared light

860nm linear infrared light

Testing method

Diffuse reflection

Sensing Distance

10-150mm

20-300mm

10-150mm

Supply voltage

1224VDC±10%

Consumption Current

Below 45mA

Output state

Light-ON/Dark-ON

Protection circuit

Short circuit, anti -polarity, overcurrent

Reaction time

Below 1.5ms

indicator light

Yellow LED (lights up when illuminated)

Ambient temperature range

Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation)

Ambient humidity range

Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)

Ambient illumination

1,000 lx max. with fluorescent light on the surface of the receiver

withstand voltage

AC1000V 1 minute of all power connection terminals and short circuit protection between the shell

Insulation resistance

more than 20MΩ

Vibration resistance

Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions

Shock resistance

Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions

Material

CoverABS、Display cover: PC

Degree of protection

IP65

cable

Φ4*4-core PVC cable 2m

Weight

Approx.40g

Dimensions




Output circuit
