Square photoelectric sensor

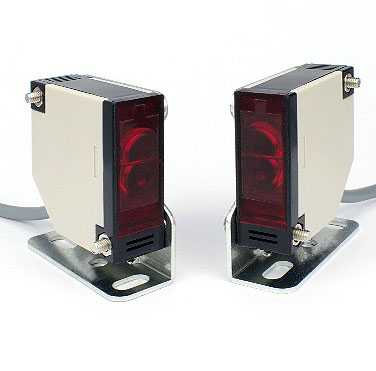

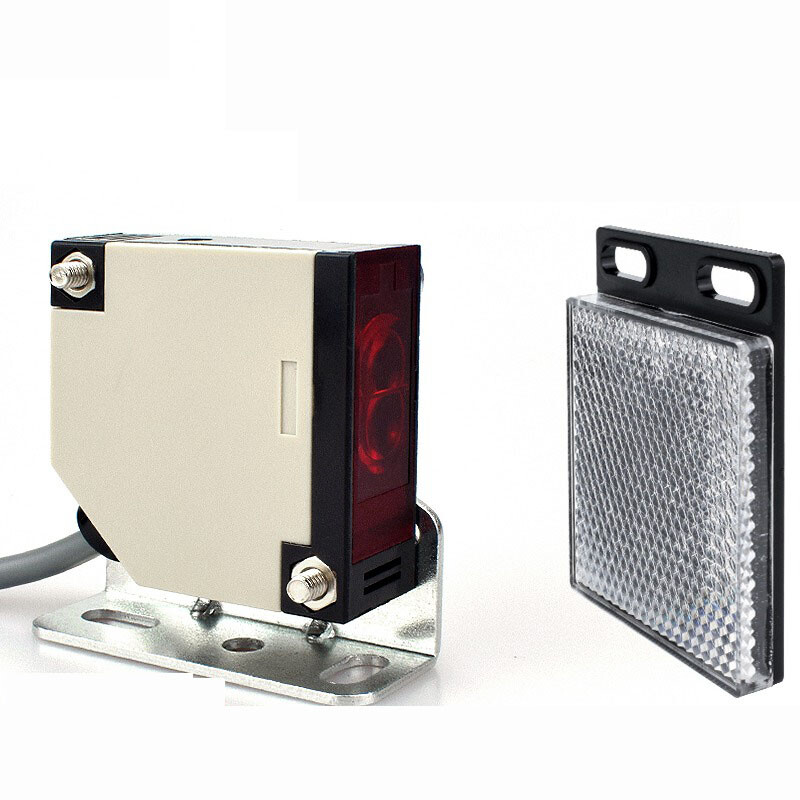

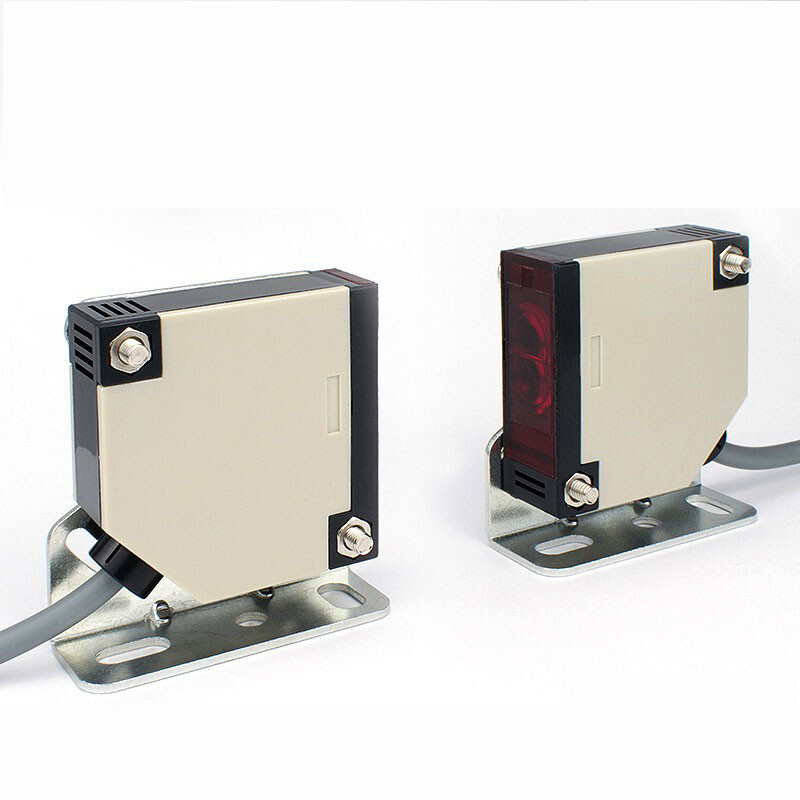

GQ4 Photoelectric sensor
Juncheng Intelligence is a high-tech enterprise focusing on sensor research and development, production and sales, located in Goldman Sachs Science Park, Dongguan City, Guangdong Province. After years of development and accumulation, we have become an influential intelligent sensor solution provider, with color sensors, laser sensors, photoelectric sensors, ultrasonic sensors, fiber optic sensors, safety light curtains, encoders and other products as the main products. The products are widely used in food packaging, paper printing, cosmetics, pharmaceutical industry, electronic semiconductors, woodworking machinery, warehousing and logistics, automobiles, steel and other industries.
Since its establishment, Juncheng Intelligence has maintained long-term strategic cooperation with many scientific research institutes and has accumulated a group of experienced R&D personnel to create various sensor solutions for industrial automation. From product development to after-sales service, Juncheng has always been committed to using rich industry experience and professional technology to create the best sensor products and solutions.
Contact Us

MAIN PRODUCTS

Output

Model

NPN

GQ4-FR500NO

GQ4-FR1MNO

GQ4-MR4MN

GQ4-MR4MNO

GQ4-TR15MN

GQ4-TR15MNO

PNP

GQ4-FR500PO

GQ4-FR1MPO

GQ4-MR4MP

GQ4-MR4MPO

GQ4-TR15MP

GQ4-TR15MPO

light source

880nm infrared light

Testing method

Diffuse reflection

Mirror reflection

Shooting

Sensing Distance

50-500mm

200-1500mm

4m

15m

Supply voltage

12~24VDC±10%

Consumption Current

<30mA

Output state

Light-ON

Light-ON

Light-ON/Dark-ON

Light-ON

Light-ON/Dark-ON

Light-ON

Protection circuit

Short circuit, anti -polarity, overcurrent

Reaction time

<5ms

indicator light

Yellow LED (lights up when illuminated)

Ambient temperature range

Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation)

Ambient humidity range

Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)

Ambient illumination

1,000 lx max. with fluorescent light on the surface of the receiver

withstand voltage

AC1000V 1 minute of all power connection terminals and short circuit protection between the shell

Insulation resistance

more than 20MΩ

Vibration resistance

Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions

Shock resistance

Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions

Material

Cover:ABS、Display cover: PC

Degree of protection

IP65

cable

Φ4*3-core PVC cable 2m

Φ4*4-core PVC cable 2m

Φ4*3-core PVC cable 2m

Φ4*4-core PVC cable 2m

Φ4*3-core PVC cable 2m

Weight

Approx.40g

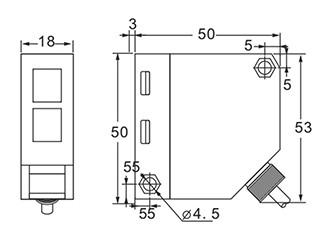

Dimensions





Output circuit
