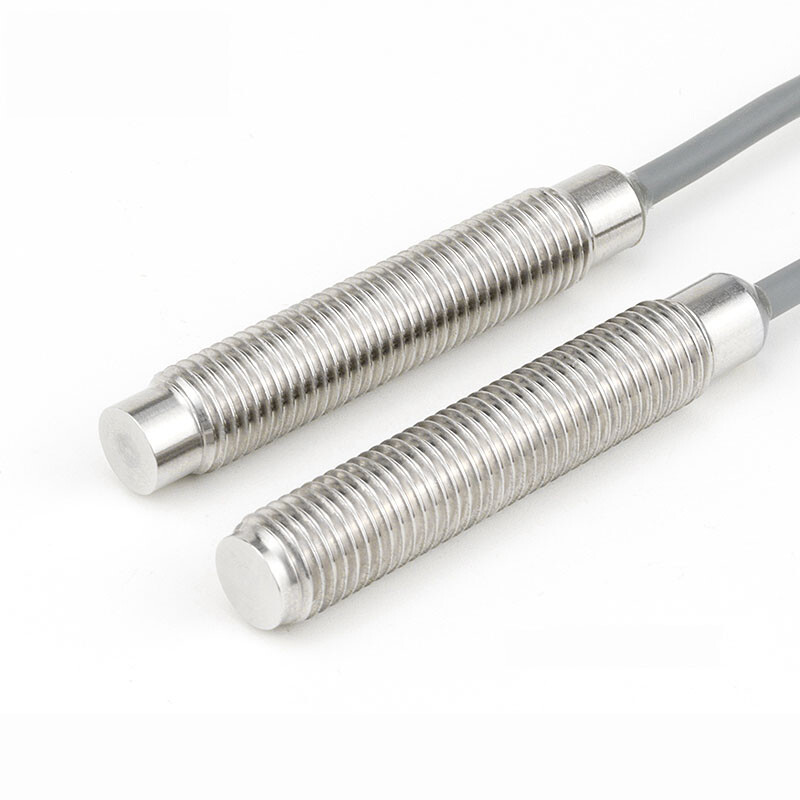

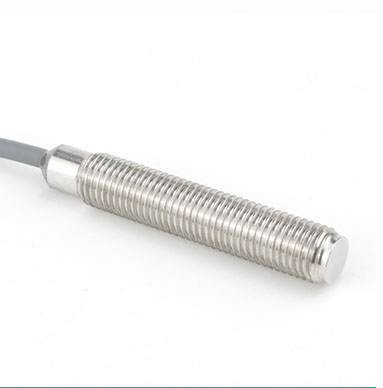

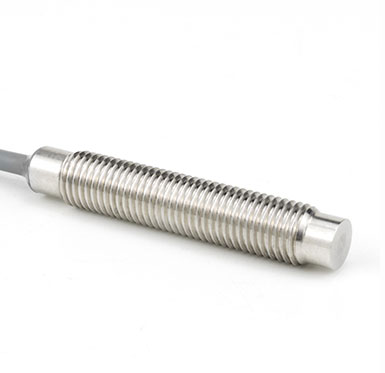

DMM08 All metal encapsulated inductive proximity sensor
Juncheng Intelligence is a high-tech enterprise focusing on sensor research and development, production and sales, located in Goldman Sachs Science Park, Dongguan City, Guangdong Province. After years of development and accumulation, we have become an influential intelligent sensor solution provider, with color sensors, laser sensors, photoelectric sensors, ultrasonic sensors, fiber optic sensors, safety light curtains, encoders and other products as the main products. The products are widely used in food packaging, paper printing, cosmetics, pharmaceutical industry, electronic semiconductors, woodworking machinery, warehousing and logistics, automobiles, steel and other industries.
Since its establishment, Juncheng Intelligence has maintained long-term strategic cooperation with many scientific research institutes and has accumulated a group of experienced R&D personnel to create various sensor solutions for industrial automation. From product development to after-sales service, Juncheng has always been committed to using rich industry experience and professional technology to create the best sensor products and solutions.
Contact Us

MAIN PRODUCTS

Model

Sensing range

Installation

Thread size

Output method

Output status

L

V

Connection

DMM08-01S-BNO

1mm

flush

M8×1

NPN

NO

45mm

-

Φ3*3-core PVC cable 2m

DMM08-01S-BNC

NC

DMM08-01S-BPO

PNP

NO

DMM08-01S-BPC

NC

DMM08-02S-BNO

2mm

NPN

NO

4mm

DMM08-02S-BNC

NC

DMM08-02S-BPO

PNP

NO

DMM08-02S-BPC

NC

DMM08-02S-NNO

2mm

non-flush

NPN

NO

-

DMM08-02S-NNC

NC

DMM08-02S-NPO

PNP

NO

DMM08-02S-NPC

NC

DMM08-03S-NNO

3mm

NPN

NO

4mm

DMM08-03S-NNC

NC

DMM08-03S-NPO

PNP

NO

DMM08-03S-NPC

NC

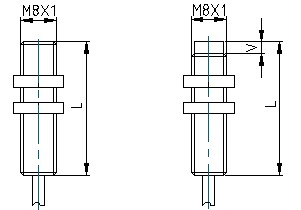

Dimensions





Performance

Installation

flush

non-flush

Sensing range

1mm

2mm

3mm

Supply voltage

DC10-30V

Ripple

<10%

Max.Load Current

150mA

No Load Current

<10mA

Leakage Current

<0.01mA

Voltage Drop

<1.5V

Switching Frequency

400Hz

300Hz

300Hz

200Hz

Response Time

0.5ms

1ms

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

<3.0%(Sr)

Protection Category

IP67

Operating Temperature

-25+70

Temperature Drift

<10%(Sr)

Housing Material

Stainless Steel
