All metal encapsulated inductive proximity sensor

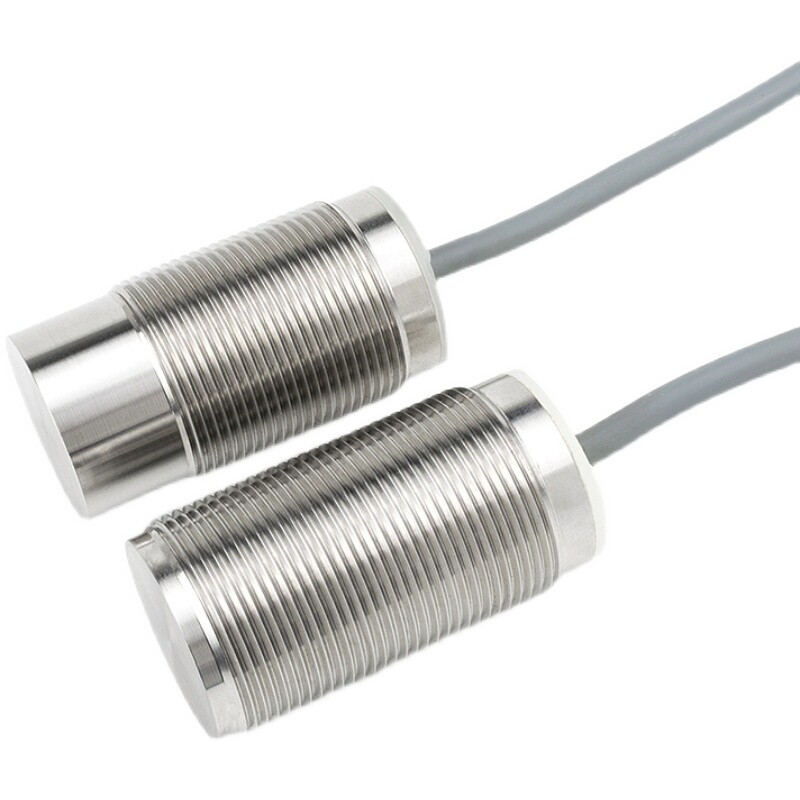

DMM30 All metal encapsulated inductive proximity sensor
Juncheng Intelligence is a high-tech enterprise focusing on sensor research and development, production and sales, located in Goldman Sachs Science Park, Dongguan City, Guangdong Province. After years of development and accumulation, we have become an influential intelligent sensor solution provider, with color sensors, laser sensors, photoelectric sensors, ultrasonic sensors, fiber optic sensors, safety light curtains, encoders and other products as the main products. The products are widely used in food packaging, paper printing, cosmetics, pharmaceutical industry, electronic semiconductors, woodworking machinery, warehousing and logistics, automobiles, steel and other industries.
Since its establishment, Juncheng Intelligence has maintained long-term strategic cooperation with many scientific research institutes and has accumulated a group of experienced R&D personnel to create various sensor solutions for industrial automation. From product development to after-sales service, Juncheng has always been committed to using rich industry experience and professional technology to create the best sensor products and solutions.
Contact Us

MAIN PRODUCTS

Model

Sensing range

Installation

Thread size

Output method

Output status

L

V

Connection

DMM30-10S-BNO

10

flush

M30×1.5

NPN

NO

55

-

Φ5*3-core PVC cable 2m

DMM30-10S-BNC

NC

DMM30-10S-BPO

PNP

NO

DMM30-10S-BPC

NC

DMM30-15S-NNO

15

non-flush

NPN

NO


DMM30-15S-NNC

NC

DMM30-15S-NPO

PNP

NO

DMM30-15S-NPC

NC

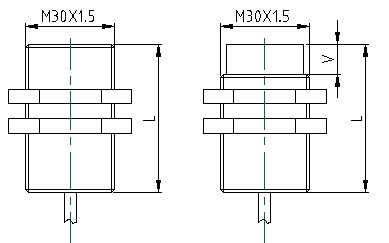

Dimensions










Model

Sensing range

Installation

Thread size

Output method

Output status

L

V

Connection

DMM30-10S-BNOT

10

flush

M30×1.5

NPN

NO

78

-

M12 4-pin

DMM30-10S-BNCT

NC

DMM30-10S-BPOT

PNP

NO

DMM30-10S-BPCT

NC

DMM30-15S-NNOT

15

non-flush

NPN

NO

12

DMM30-15S-NNCT

NC

DMM30-15S-NPOT

PNP

NO

DMM30-15S-NPCT

NC

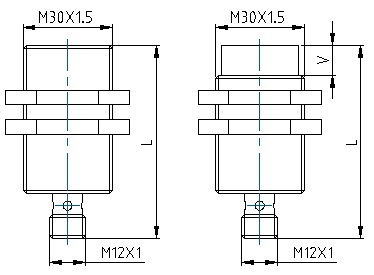

Dimensions









Performance

Installation

flush

non-flush

Sensing range

10

15

Supply voltage

DC10-30V

Ripple

<10%

Max.Load Current

150mA

No Load Current

<10mA

Leakage Current

<0.01mA

Voltage Drop

<1.5V

Switching Frequency

300Hz

250Hz

Response Time

0.5ms

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

<3.0%(Sr)

Protection Category

IP67

Operating Temperature

-25+70

Temperature Drift

<10%(Sr)

Housing Material

Stainless Steel
