Output

NPN

PNP

Supply  voltage

12～24VDC±10%

Consumption Current

45mA以下

Output state

Dual output: Instant count（blank line);Default value output (white line)，NO/NC

Reaction time

2μs

Sensitivity adjustment

Clockwise adjustment increases sensitivity, counterclockwise adjustment decreases sensitivity

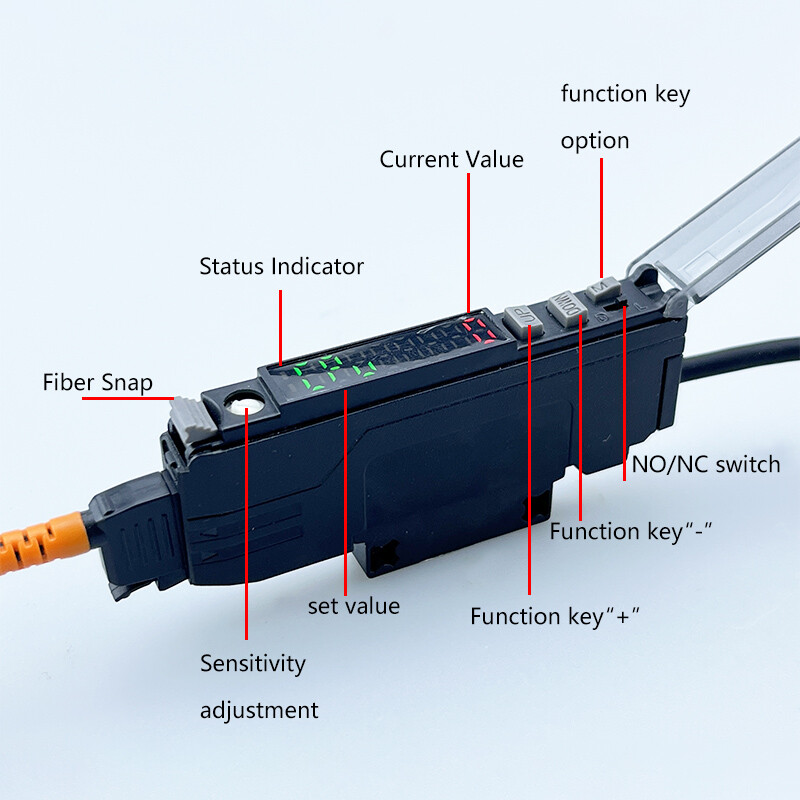

Indicator

Daltic values (4 digits green light emitting diodes) and current values (4 digits of red light emitting diode), current value range: 0-999999

Delay function

ond, oFFd, SHOT, and tOFF, delay range: 0 ～ 9999 milliseconds.

Protection circuit

Short circuit, anti -polarity, overcurrent

Ambient temperature range

Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation)

Ambient humidity range

Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)

Ambient illumination

1,000 lx max. with fluorescent light on the surface of the receiver

withstand voltage

AC1000V 1 minute of all power connection terminals and short circuit protection between the shell

Insulation resistance

More than 20mΩ

Vibration resistance

Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions

Shock resistance

Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions

Material

COVER： PBT

Degree of protection

IP65

Cable

Φ4*4 core PVC cable 2M

Weight

Approx.80g

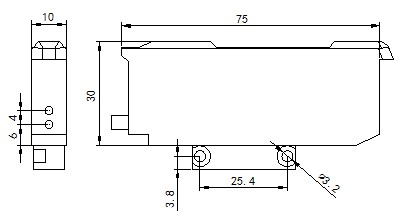

Dimensions

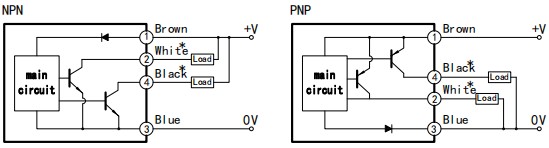

Output circuit

*Black line counting output, White line reaching set value output

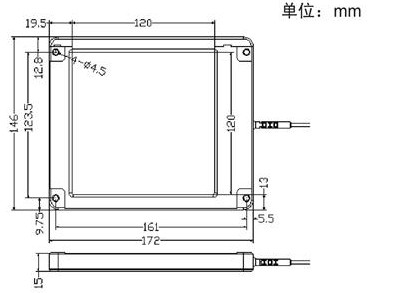

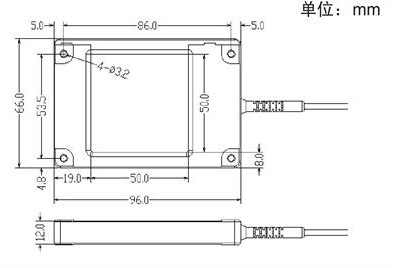

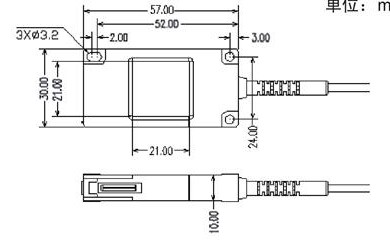

Internal window size

20x20mm

50x50mm

120x120mm

Minimum detectable object

0.5mm

1mm

2.2mm

Weight

40g

150g

500g
