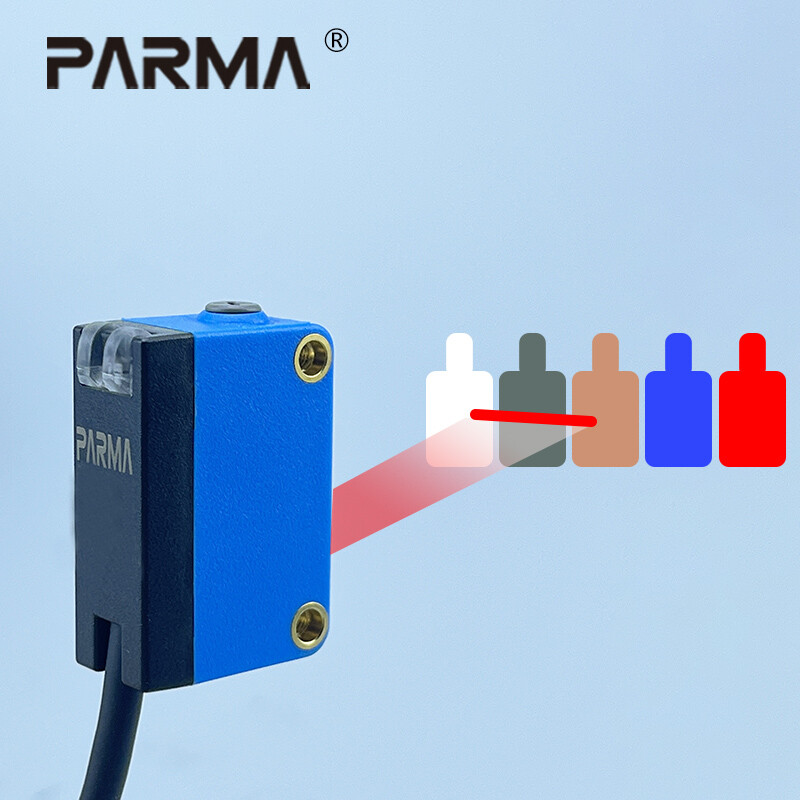

Square photoelectric sensor

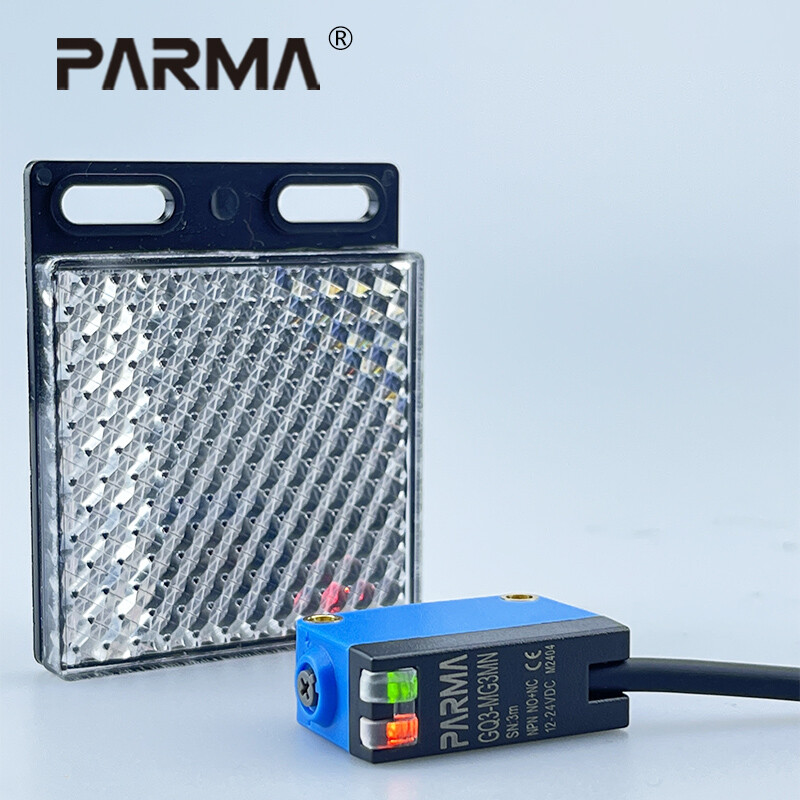

Sensor fotoeléctrico GQ3
Juncheng Intelligence es una empresa de alta tecnología que se centra en la investigación y el desarrollo, la producción y las ventas de sensores, ubicada en Goldman Sachs Science Park, ciudad de Dongguan, provincia de Guangdong. Después de años de desarrollo y acumulación, nos hemos convertido en un influyente proveedor de soluciones de sensores inteligentes, con sensores de color, sensores láser, sensores fotoeléctricos, sensores ultrasónicos, sensores de fibra óptica, cortinas de luz de seguridad, codificadores y otros productos como productos principales. Los productos se utilizan ampliamente en el envasado de alimentos, la impresión de papel, los cosméticos, la industria farmacéutica, los semiconductores electrónicos, la maquinaria para trabajar la madera, el almacenamiento y la logística, los automóviles, el acero y otras industrias. Desde su creación, Juncheng Intelligence ha mantenido una cooperación estratégica a largo plazo con muchos institutos de investigación científica y ha acumulado un grupo de personal experimentado en I+D para crear varias soluciones de sensores para la automatización industrial. Desde el desarrollo de productos hasta el servicio posventa, Juncheng siempre se ha comprometido a utilizar una rica experiencia en la industria y una tecnología profesional para crear los mejores productos y soluciones de sensores.
Contacta con nosotros

MAIN PRODUCTS

GQ3 Standard Series

Output

Model

NPN

GQ3-FR100N

GQ3-FG100N

GQ3-FG1MN

GQ3-MG3MN

GQ3-HM2MN

GQ3-TG12MN

PNP

GQ3-FR100P

GQ3-FG100P

GQ3-FG1MP

GQ3-MG3MP

GQ3-HM2MP

GQ3-TG12MP

light source

860nm infrared light

630nm red light

Testing method

Diffuse reflection

Mirror reflection

Detecting transparent objects

Shooting

Sensing Distance

5-100mm

5-100mm

20-1000mm

20-3000mm

20-3000mm

10-12000mm

Supply voltage

12～24VDC±10%

Consumption Current

Below 45mA

Output state

Light-ON/Dark-ON

Protection circuit

Short circuit, anti -polarity, overcurrent

Reaction time

Below 1.5ms

indicator light

Yellow LED (lights up when illuminated)

Ambient temperature range

Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation)

Ambient humidity range

Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)

Ambient illumination

1,000 lx max. with fluorescent light on the surface of the receiver

withstand voltage

AC1000V 1 minute of all power connection terminals and short circuit protection between the shell

Insulation resistance

more than 20MΩ

Vibration resistance

Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions

Shock resistance

Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions

Material

Cover：ABS、Display cover: PC

Degree of protection

IP65

cable

Φ4*4-core PVC cable 2m

Weight

Approx.40g

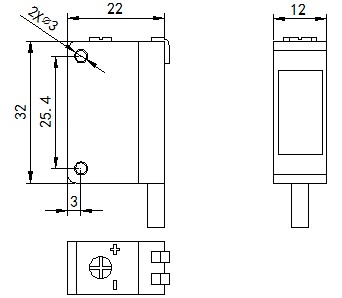

Dimensions

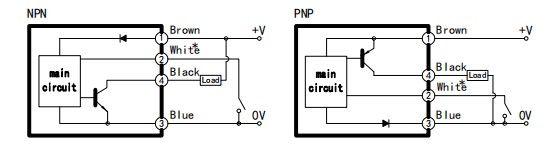

Output circuit







GQ3 Red Light Background Suppression Series

Output

Model

NPN

GQ3-BG50N

GQ3-BG100N

GQ3-BG300N

GQ3-BK100N

PNP

GQ3-BG50P

GQ3-BG100P

GQ3-BG300P

GQ3-BK100P

light source

630nm red light

630nm linear red light

Testing method

Diffuse reflection (background suppression)

Sensing Distance

5-50mm

15-100mm

20-300mm

15-100mm

Supply voltage

12～24VDC±10%

Consumption Current

Below 45mA

Output state

Light-ON/Dark-ON

Protection circuit

Short circuit, anti -polarity, overcurrent

Reaction time

Below 1.5ms

indicator light

Yellow LED (lights up when illuminated)

Ambient temperature range

Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation)

Ambient humidity range

Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)

Ambient illumination

1,000 lx max. with fluorescent light on the surface of the receiver

withstand voltage

AC1000V 1 minute of all power connection terminals and short circuit protection between the shell

Insulation resistance

more than 20MΩ

Vibration resistance

Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions

Shock resistance

Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions

Material

Cover：ABS、Display cover: PC

Degree of protection

IP65

cable

Φ4*4-core PVC cable 2m

Weight

Approx.40g

Dimensions


Output circuit



GQ3 Infrared Background Suppression Series

Output

Model

NPN

GQ3-BR150N

GQ3-BR300N

GQ3-BE150N

PNP

GQ3-BR150P

GQ3-BR300P

GQ3-BE150P

light source

860nm infrared light

860nm linear infrared light

Testing method

Diffuse reflection

Sensing Distance

10-150mm

20-300mm

10-150mm

Supply voltage

12～24VDC±10%

Consumption Current

Below 45mA

Output state

Light-ON/Dark-ON

Protection circuit

Short circuit, anti -polarity, overcurrent

Reaction time

Below 1.5ms

indicator light

Yellow LED (lights up when illuminated)

Ambient temperature range

Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation)

Ambient humidity range

Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)

Ambient illumination

1,000 lx max. with fluorescent light on the surface of the receiver

withstand voltage

AC1000V 1 minute of all power connection terminals and short circuit protection between the shell

Insulation resistance

more than 20MΩ

Vibration resistance

Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions

Shock resistance

Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions

Material

Cover：ABS、Display cover: PC

Degree of protection

IP65

cable

Φ4*4-core PVC cable 2m

Weight

Approx.40g

Dimensions




Output circuit
