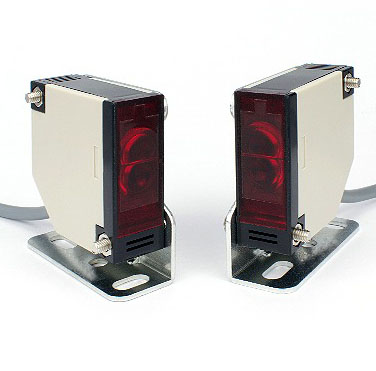

Square photoelectric sensor

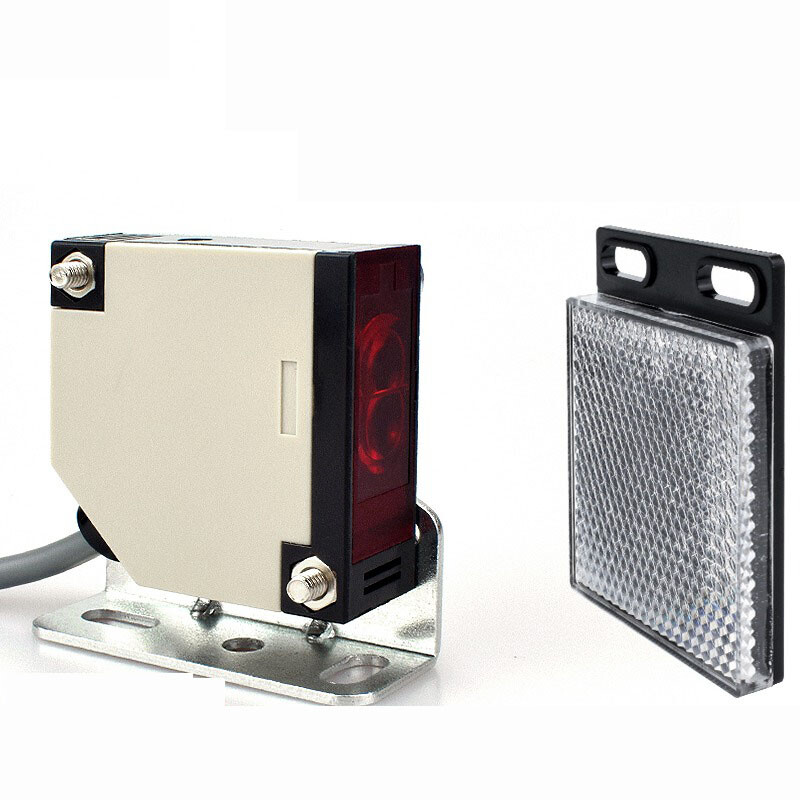

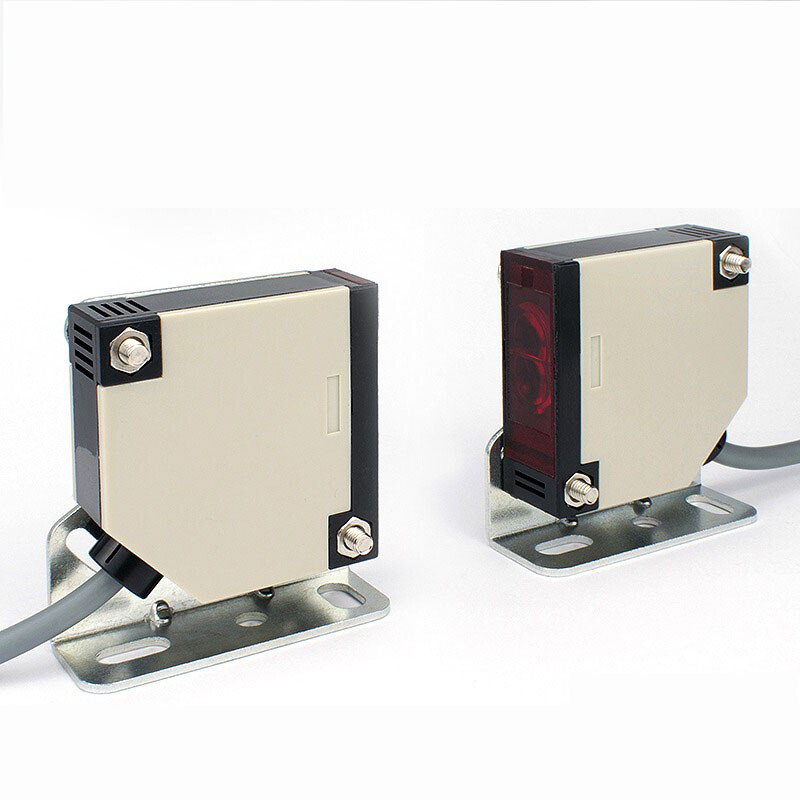

Sensor fotoeléctrico GQ4
Juncheng Intelligence es una empresa de alta tecnología que se centra en la investigación y el desarrollo, la producción y las ventas de sensores, ubicada en Goldman Sachs Science Park, ciudad de Dongguan, provincia de Guangdong. Después de años de desarrollo y acumulación, nos hemos convertido en un influyente proveedor de soluciones de sensores inteligentes, con sensores de color, sensores láser, sensores fotoeléctricos, sensores ultrasónicos, sensores de fibra óptica, cortinas de luz de seguridad, codificadores y otros productos como productos principales. Los productos se utilizan ampliamente en el envasado de alimentos, la impresión de papel, los cosméticos, la industria farmacéutica, los semiconductores electrónicos, la maquinaria para trabajar la madera, el almacenamiento y la logística, los automóviles, el acero y otras industrias. Desde su creación, Juncheng Intelligence ha mantenido una cooperación estratégica a largo plazo con muchos institutos de investigación científica y ha acumulado un grupo de personal experimentado en I+D para crear varias soluciones de sensores para la automatización industrial. Desde el desarrollo de productos hasta el servicio posventa, Juncheng siempre se ha comprometido a utilizar una rica experiencia en la industria y una tecnología profesional para crear los mejores productos y soluciones de sensores.
Contacta con nosotros

MAIN PRODUCTS

Output

Model

NPN

GQ4-FR500NO

GQ4-FR1MNO

GQ4-MR4MN

GQ4-MR4MNO

GQ4-TR15MN

GQ4-TR15MNO

PNP

GQ4-FR500PO

GQ4-FR1MPO

GQ4-MR4MP

GQ4-MR4MPO

GQ4-TR15MP

GQ4-TR15MPO

light source

880nm infrared light

Testing method

Diffuse reflection

Mirror reflection

Shooting

Sensing Distance

50-500mm

200-1500mm

4m

15m

Supply voltage

12~24VDC±10%

Consumption Current

<30mA

Output state

Light-ON

Light-ON

Light-ON/Dark-ON

Light-ON

Light-ON/Dark-ON

Light-ON

Protection circuit

Short circuit, anti -polarity, overcurrent

Reaction time

<5ms

indicator light

Yellow LED (lights up when illuminated)

Ambient temperature range

Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation)

Ambient humidity range

Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)

Ambient illumination

1,000 lx max. with fluorescent light on the surface of the receiver

withstand voltage

AC1000V 1 minute of all power connection terminals and short circuit protection between the shell

Insulation resistance

more than 20MΩ

Vibration resistance

Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions

Shock resistance

Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions

Material

Cover:ABS、Display cover: PC

Degree of protection

IP65

cable

Φ4*3-core PVC cable 2m

Φ4*4-core PVC cable 2m

Φ4*3-core PVC cable 2m

Φ4*4-core PVC cable 2m

Φ4*3-core PVC cable 2m

Weight

Approx.40g

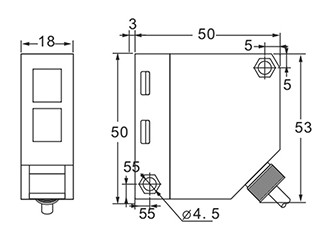

Dimensions





Output circuit
