NPN

GS18T-FR400N

GS18T-MR4MN

GS18T-TR10MN

PNP

GS18T-FR400P

GS18T-MR4MP

GS18T-TR10MP

light source

950nm infrared light

Testing method

Diffuse reflection

Mirror reflection

Shooting

Sensing Distance

400mm

4m

10m

Supply voltage

12～24VDC±10%

Consumption Current

Below 100mA

Output state

Light-ON/Dark-ON

Protection circuit

Short circuit, anti -polarity, overcurrent

Reaction time

<1.5ms

indicator light

Yellow LED (lights up when illuminated)

Ambient temperature range

Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation)

Ambient humidity range

Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)

Ambient illumination

1,000 lx max. with fluorescent light on the surface of the receiver

withstand voltage

AC1000V 1 minute of all power connection terminals and short circuit protection between the shell

Insulation resistance

more than 20MΩ

Vibration resistance

Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions

Shock resistance

Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions

Material

Cover：Nickel plated brass、Display cover: PC

Degree of protection

IP65

cable

Φ4*3-core PVC cable 2m

Weight

约40g

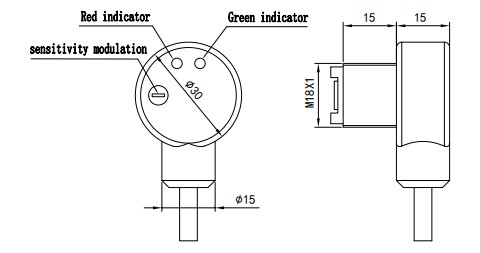

Dimensions

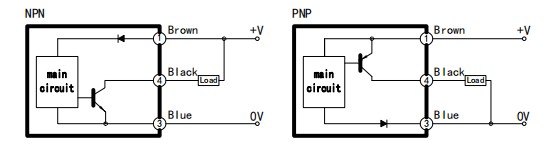

Output circuit
