NPN

GS8-FR200NO

GS8-FR200NC

GS12-FR100N

GS12-FR300N

GS12-TR2000N

GS12-TR5000N

PNP

GS8-FR200PO

GS8-FR200PC

GS12-FR100P

GS12-FR300P

GS12-TR2000P

GS12-TR5000P

light source

880nm infrared light

Testing method

Diffuse reflection

Shooting

Sensing Distance

200mm

100mm

300mm

2m

5m

Supply voltage

10～30VDC±10%

Consumption Current

<45mA

Output state

Light-ON

Dark-ON

Light-ON/Dark-ON

Protection circuit

Short circuit, anti -polarity, overcurrent

Reaction time

<5ms

indicator light

Yellow LED (lights up when illuminated)

Ambient temperature range

Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation)

Ambient humidity range

Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)

Ambient illumination

1,000 lx max. with fluorescent light on the surface of the receiver

withstand voltage

AC1000V 1 minute of all power connection terminals and short circuit protection between the shell

Insulation resistance

more than 20MΩ

Vibration resistance

Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions

Shock resistance

Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions

Material

Cover：Nickel plated brass、Display cover: PC

Degree of protection

IP65

cable

Φ4*3-core PVC cable 2m

Φ4*4-core PVC cable 2m

Weight

Approx.40g

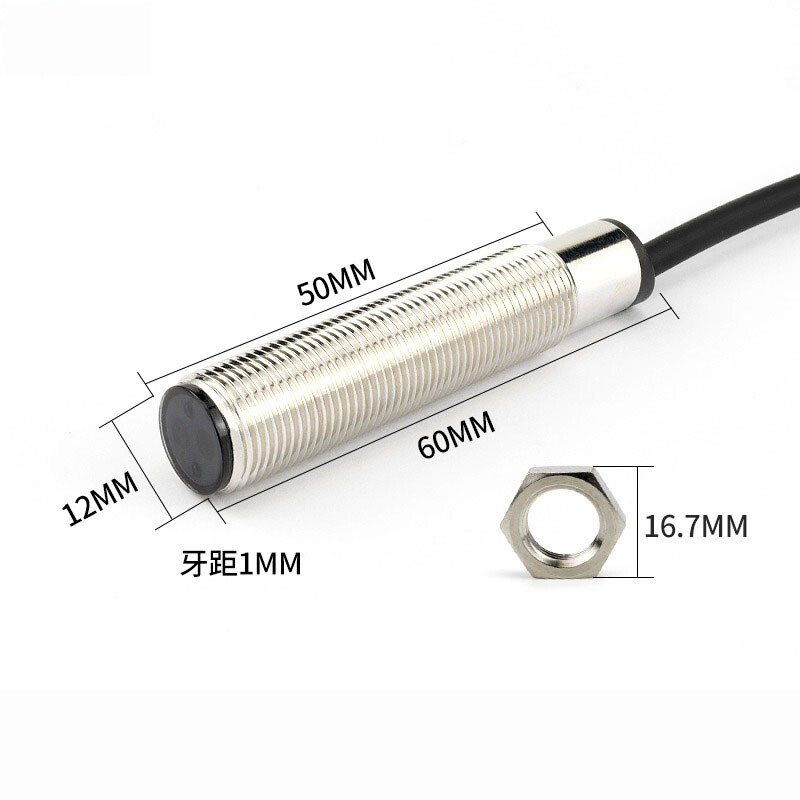

Dimensions

Output circuit
