NPN

LS-F30WN

LS-F50WN

LS-F100N

LS-F100WN

LS-F200N

LS-F200WN

LS-F400N

LS-F400WN

PNP

LS-F30WP

LS-F50WP

LS-F100P

LS-F100WP

LS-F200P

LS-F200WP

LS-F400P

LS-F400WP

Measurement center distance

30mm

50mm

100mm

100mm

200mm

400mm

measuring range

±5mm

±15mm

±35mm

±35mm

±80mm

±200mm

Repetitive accuracy

10μm

30μm

70μm

70μm

200μm

300μm(200～400mm)
800μm(400～600mm)

Supply voltage

12～24VDC±10%

light source

655nm red laser

Straightness

±0.1% F.S.

±0.2% F.S.

±0.2%F.S.(测量距离200～400mm)
±0.3%F.S.(测量距离400～600mm)

temperature characteristic

0.03% F.S./℃

Current consumption

Below 40mA

output

<50mA

Output status

Light-ON/Dark-ON

Analog output

Voltage output: 0-5V

－

Voltage output: 0-5V

－

Voltage output: 0-5V

－

Voltage output: 0-5V

Current output: 4-20mA

－

Current output: 4-20mA

－

Current output: 4-20mA

－

Current output: 4-20mA

Protection circuit

Short circuit protection

Reaction time

1.5ms／5ms／10ms

Ambient temperature range

Operating: −10 to +40°C, Storage: −20 to +６0°C (with no icing or condensation)

Ambient humidity range

Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)

Ambient illumination

1,000 lx max. with fluorescent light on the surface of the receiver

withstand voltage

AC1000V 1 minute of all power connection terminals and short circuit protection between the shell

Insulation resistance

more than 20MΩ

Vibration resistance

Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions

Shock resistance

Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions

Material

Cover：Aluminum、Display cover: PC

Degree of protection

IP67

cable

Φ5*5-core PVC cable 2m

Weight

Approx.85g

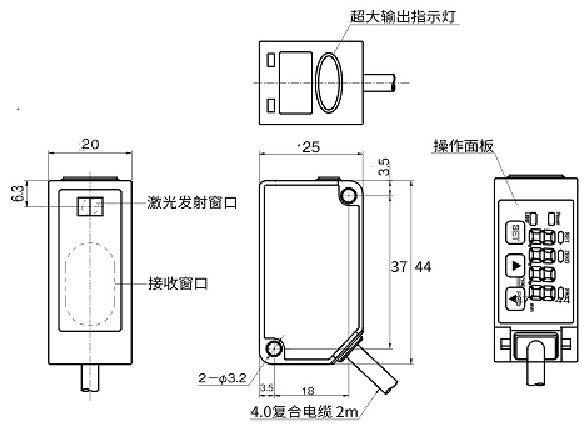

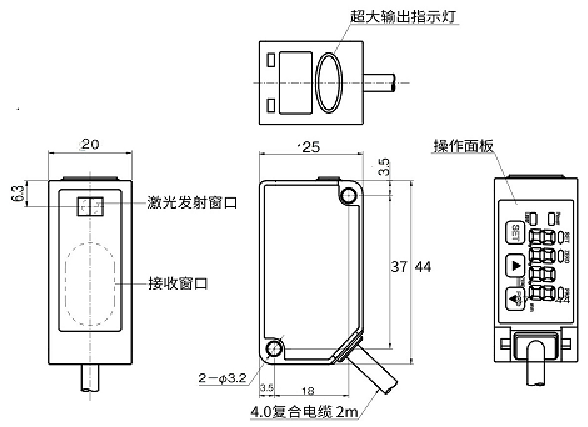

Dimensions

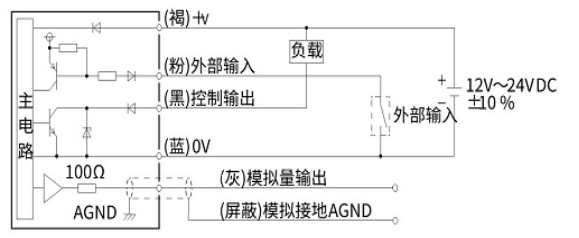

Output circuit
