Lar > produtos > Sensor fotoelétrico > Sensor fotoelétrico quadrado > Sensor fotoelétrico GQ3

Sensor fotoelétrico quadrado

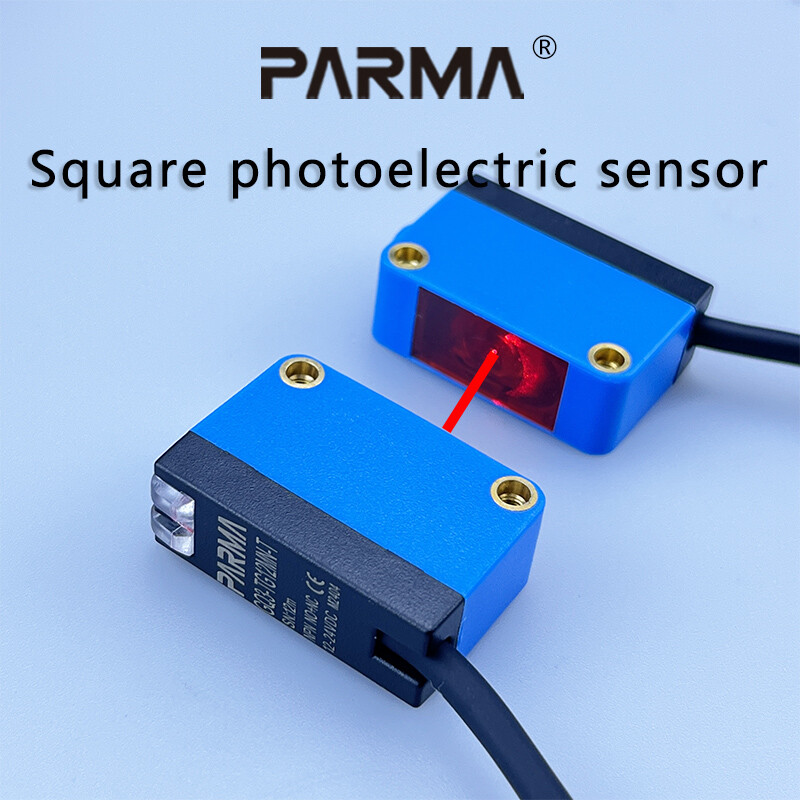

Sensor fotoelétrico GQ3

A Juncheng Intelligence é uma empresa de alta tecnologia com foco em pesquisa e desenvolvimento de sensores, produção e vendas, localizada no Goldman Sachs Science Park, Dongguan City, província de Guangdong. Após anos de desenvolvimento e acumulação, nos tornamos um fornecedor influente de soluções de sensores inteligentes, com sensores de cor, sensores a laser, sensores fotoelétricos, sensores ultrassônicos, sensores de fibra óptica, cortinas de luz de segurança, codificadores e outros produtos como os principais produtos. Os produtos são amplamente utilizados em embalagens de alimentos, impressão de papel, cosméticos, indústria farmacêutica, semicondutores eletrônicos, máquinas para marcenaria, armazenagem e logística, automóveis, aço e outras indústrias.
Desde sua fundação, a Juncheng Intelligence tem mantido cooperação estratégica de longo prazo com muitos institutos de pesquisa científica e acumulou um grupo de pessoal experiente em P&D para criar várias soluções de sensores para automação industrial. Do desenvolvimento de produtos ao serviço pós-venda, a Juncheng sempre se comprometeu a usar rica experiência na indústria e tecnologia profissional para criar os melhores produtos e soluções de sensores.

MAIN PRODUCTS

GQ3 Standard Series

Output	Model
NPN	GQ3-FR100N	GQ3-FG100N	GQ3-FG1MN	GQ3-MG3MN	GQ3-HM2MN	GQ3-TG12MN
PNP	GQ3-FR100P	GQ3-FG100P	GQ3-FG1MP	GQ3-MG3MP	GQ3-HM2MP	GQ3-TG12MP
light source	860nm infrared light	630nm red light

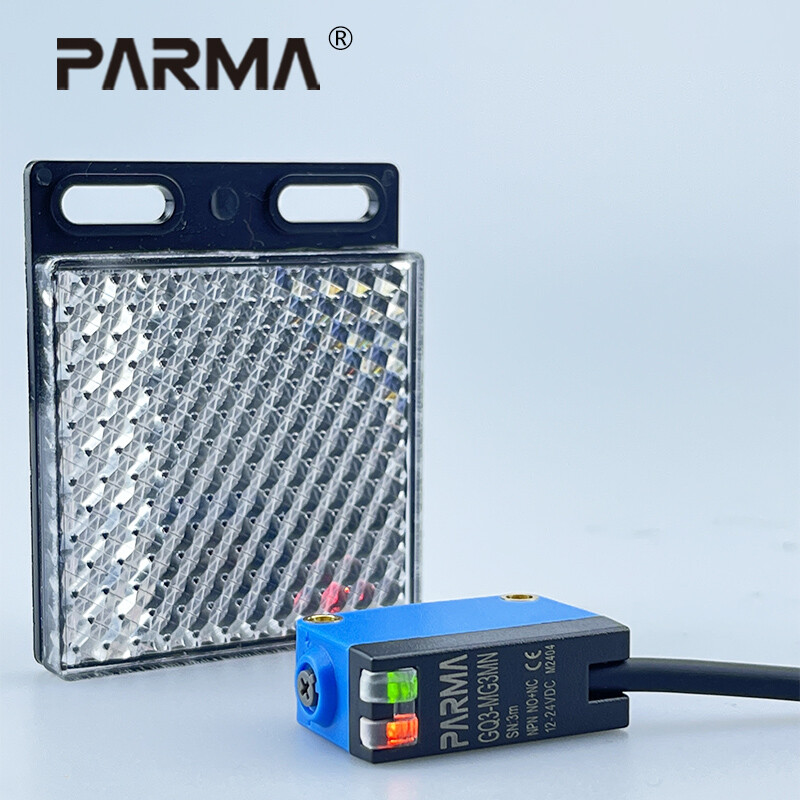

Testing method	Diffuse reflection			Mirror reflection	Detecting transparent objects	Shooting
Sensing Distance	5-100mm	5-100mm	20-1000mm	20-3000mm	20-3000mm	10-12000mm
Supply voltage	12～24VDC±10%
Consumption Current	Below 45mA
Output state	Light-ON/Dark-ON
Protection circuit	Short circuit, anti -polarity, overcurrent
Reaction time	Below 1.5ms
indicator light	Yellow LED (lights up when illuminated)
Ambient temperature range	Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation)
Ambient humidity range	Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)
Ambient illumination	1,000 lx max. with fluorescent light on the surface of the receiver
withstand voltage	AC1000V 1 minute of all power connection terminals and short circuit protection between the shell
Insulation resistance	more than 20MΩ
Vibration resistance	Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions
Shock resistance	Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
Material	Cover：ABS、Display cover: PC
Degree of protection	IP65
cable	Φ4*4-core PVC cable 2m
Weight	Approx.40g

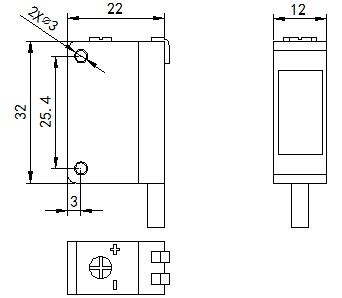

Dimensions

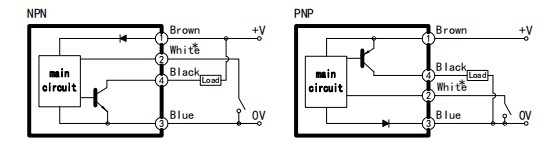

Output circuit

GQ3 Red Light Background Suppression Series

Output	Model
NPN	GQ3-BG50N	GQ3-BG100N	GQ3-BG300N	GQ3-BK100N
PNP	GQ3-BG50P	GQ3-BG100P	GQ3-BG300P	GQ3-BK100P
light source	630nm red light			630nm linear red light
Testing method	Diffuse reflection (background suppression)
Sensing Distance	5-50mm	15-100mm	20-300mm	15-100mm
Supply voltage	12～24VDC±10%
Consumption Current	Below 45mA
Output state	Light-ON/Dark-ON
Protection circuit	Short circuit, anti -polarity, overcurrent
Reaction time	Below 1.5ms
indicator light	Yellow LED (lights up when illuminated)
Ambient temperature range	Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation)
Ambient humidity range	Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)
Ambient illumination	1,000 lx max. with fluorescent light on the surface of the receiver
withstand voltage	AC1000V 1 minute of all power connection terminals and short circuit protection between the shell
Insulation resistance	more than 20MΩ
Vibration resistance	Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions
Shock resistance	Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
Material	Cover：ABS、Display cover: PC
Degree of protection	IP65
cable	Φ4*4-core PVC cable 2m
Weight	Approx.40g
Dimensions
Output circuit

GQ3 Infrared Background Suppression Series

Output	Model
NPN	GQ3-BR150N	GQ3-BR300N	GQ3-BE150N
PNP	GQ3-BR150P	GQ3-BR300P	GQ3-BE150P
light source	860nm infrared light		860nm linear infrared light
Testing method	Diffuse reflection
Sensing Distance	10-150mm	20-300mm	10-150mm
Supply voltage	12～24VDC±10%
Consumption Current	Below 45mA
Output state	Light-ON/Dark-ON
Protection circuit	Short circuit, anti -polarity, overcurrent
Reaction time	Below 1.5ms
indicator light	Yellow LED (lights up when illuminated)
Ambient temperature range	Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation)
Ambient humidity range	Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)
Ambient illumination	1,000 lx max. with fluorescent light on the surface of the receiver
withstand voltage	AC1000V 1 minute of all power connection terminals and short circuit protection between the shell
Insulation resistance	more than 20MΩ
Vibration resistance	Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions
Shock resistance	Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
Material	Cover：ABS、Display cover: PC
Degree of protection	IP65
cable	Φ4*4-core PVC cable 2m
Weight	Approx.40g
Dimensions
Output circuit
