Small photoelectric sensors

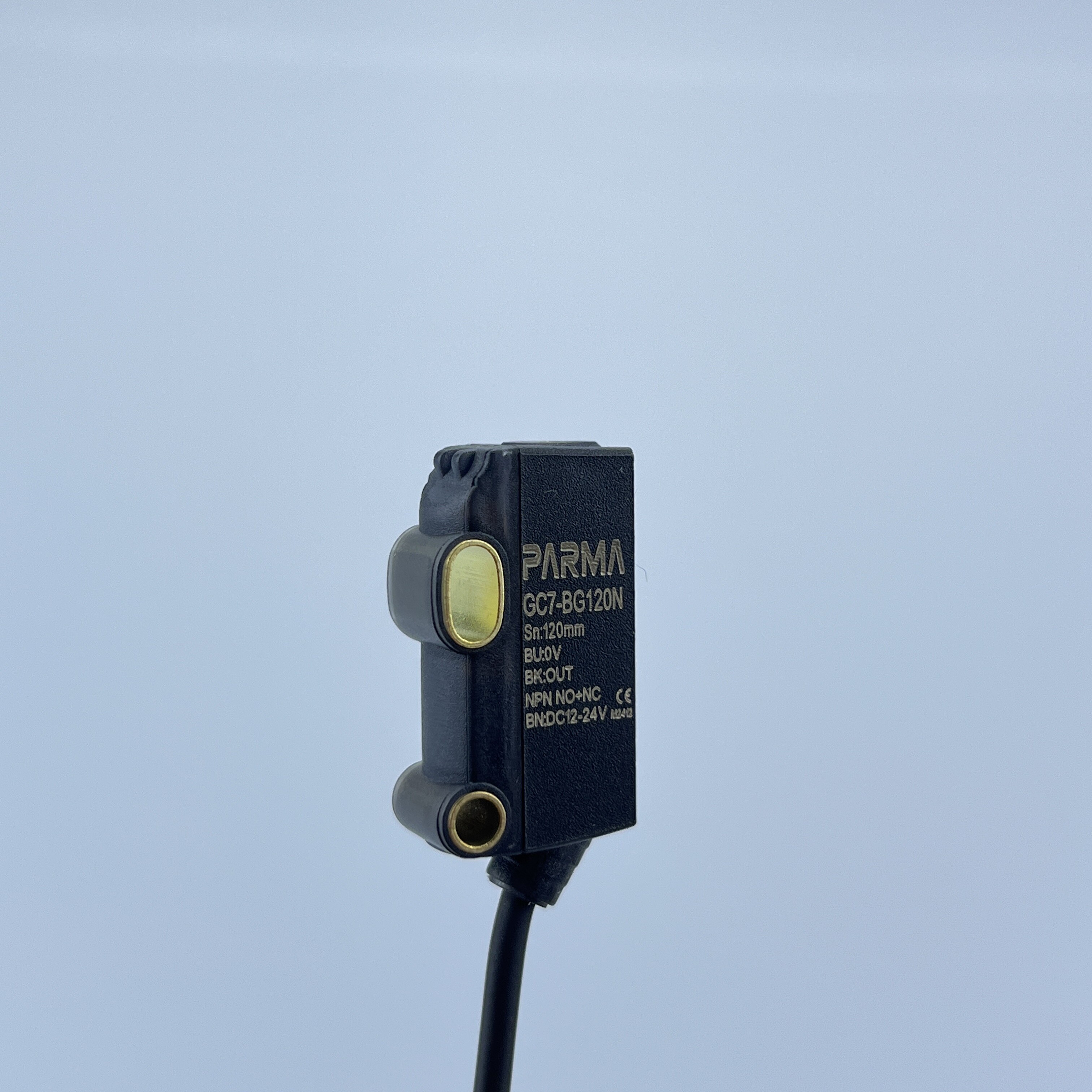

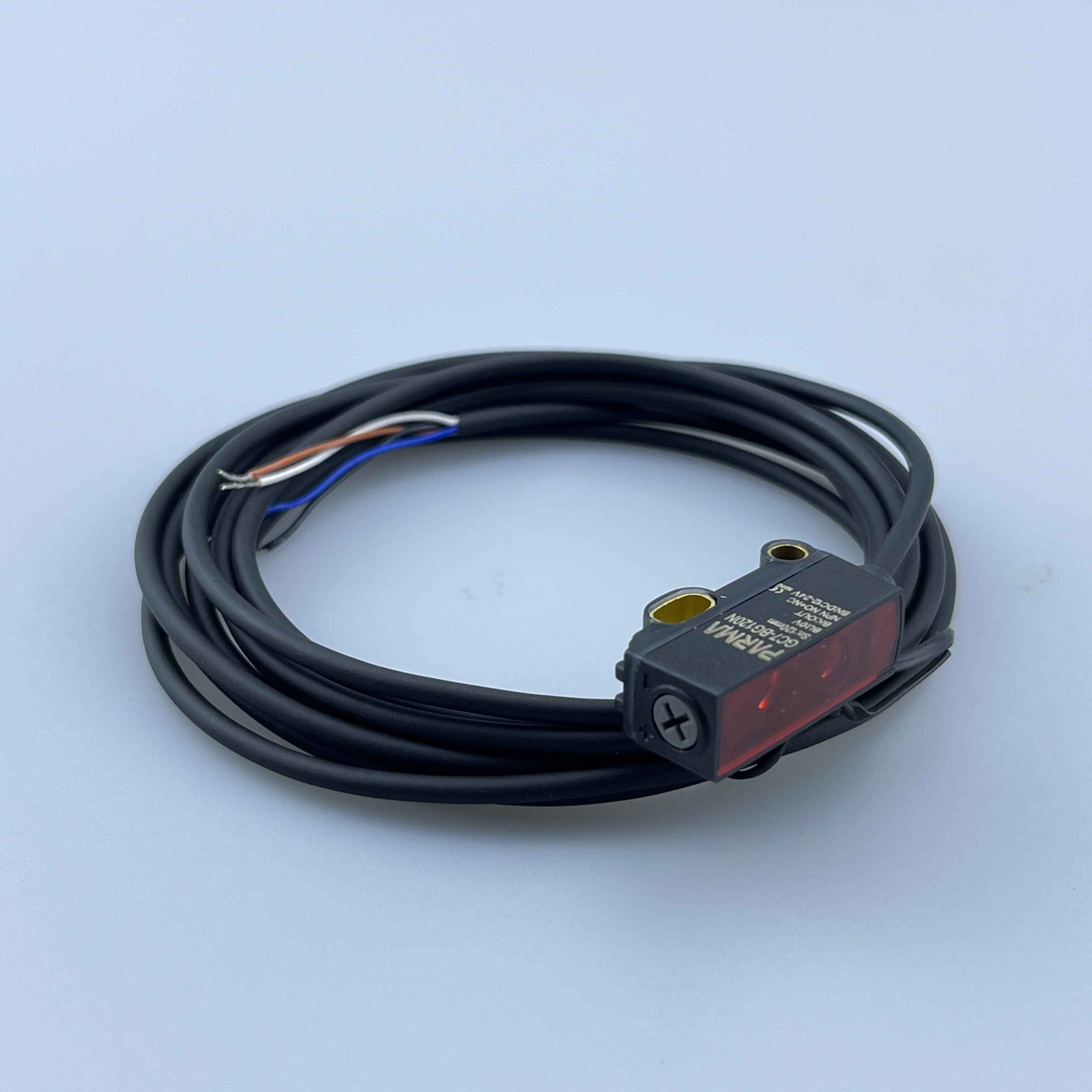

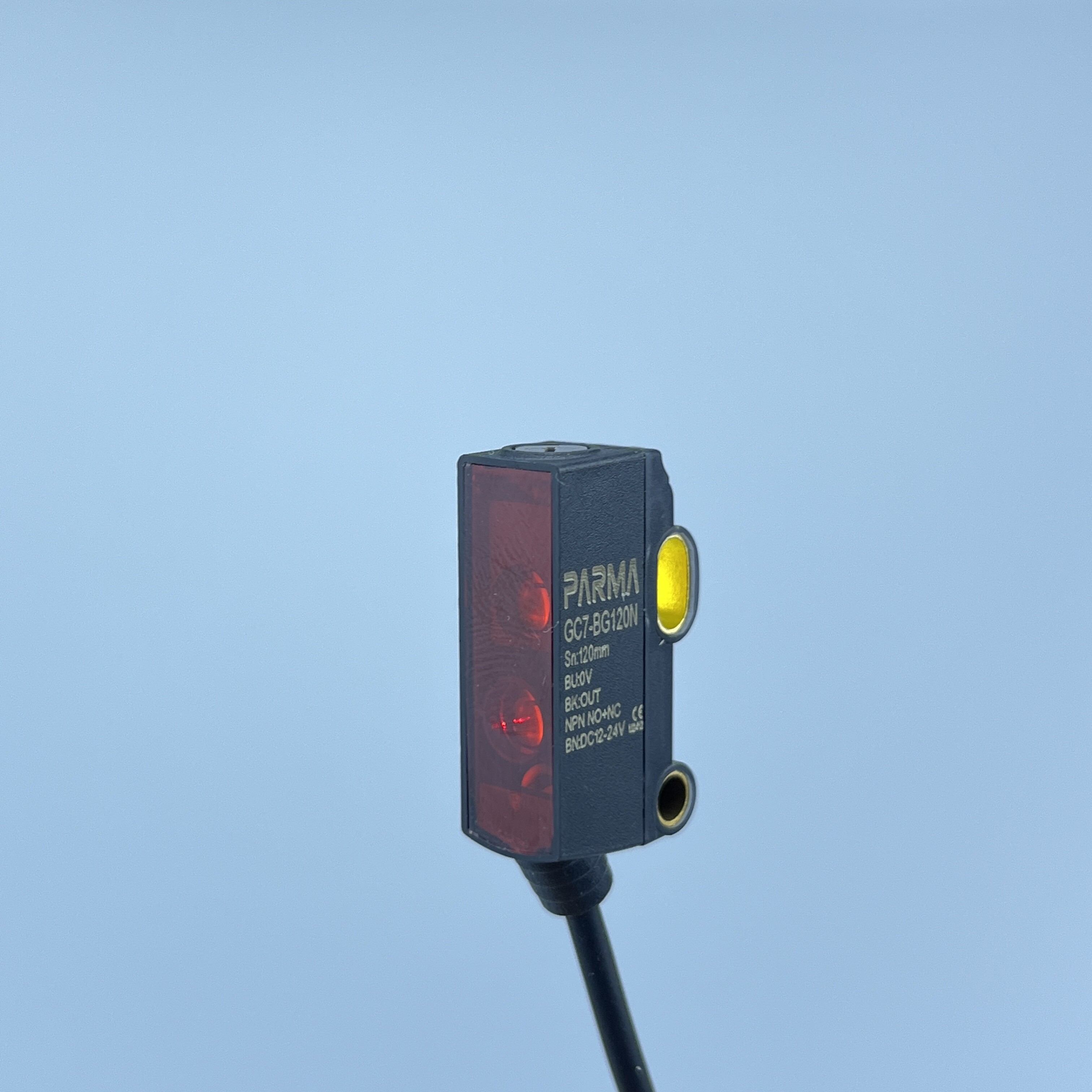

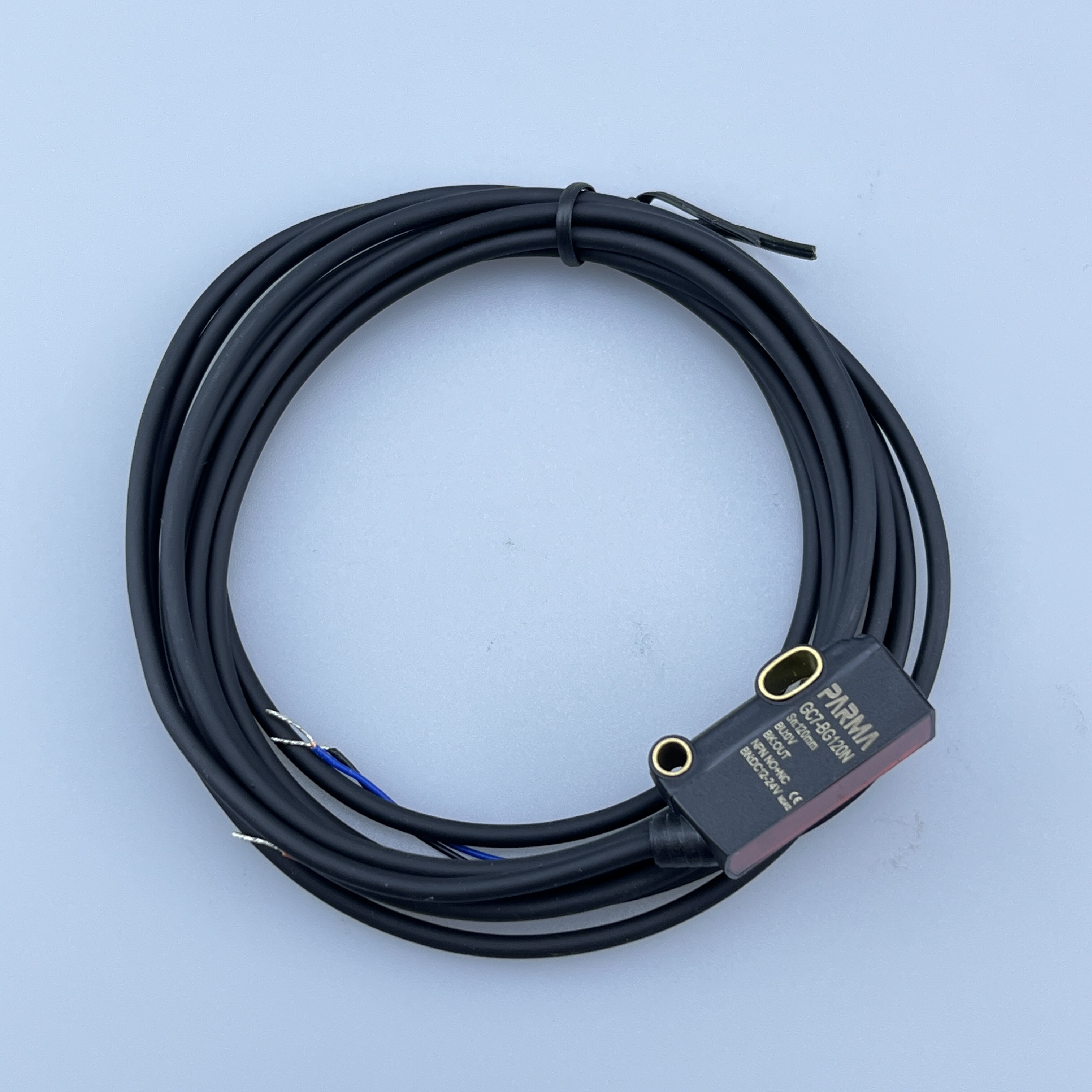

GC7 Small photoelectric sensor
Juncheng Intelligence is a high-tech enterprise focusing on sensor research and development, production and sales, located in Goldman Sachs Science Park, Dongguan City, Guangdong Province. After years of development and accumulation, we have become an influential intelligent sensor solution provider, with color sensors, laser sensors, photoelectric sensors, ultrasonic sensors, fiber optic sensors, safety light curtains, encoders and other products as the main products. The products are widely used in food packaging, paper printing, cosmetics, pharmaceutical industry, electronic semiconductors, woodworking machinery, warehousing and logistics, automobiles, steel and other industries.
Since its establishment, Juncheng Intelligence has maintained long-term strategic cooperation with many scientific research institutes and has accumulated a group of experienced R&D personnel to create various sensor solutions for industrial automation. From product development to after-sales service, Juncheng has always been committed to using rich industry experience and professional technology to create the best sensor products and solutions.
Contact Us

MAIN PRODUCTS

Product Model

GC7-BF50N

GC7-BF50NC

GC7-BF80N

GC7-BF80NC

GC7-SG120

GC7-BG120

Detecting objects

Opaque objects


Detection types

background suppression

Sensing Distance

10-50mm

15-80mm

0-120mm

Supply voltage

DC12-24V

Consumption current

<50mA

Output mode

Light-ON

Dark-ON

Light-ON

Dark-ON

Light-ON

Light-ON/Dark-ON

Reaction time

1ms

Load

Load voltage DC24V, load current 100mA

light source

infrared led

Ambient temperature range

Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation)

Ambient humidity range

Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)

Ambient illumination

1,000 lx max. with fluorescent light on the surface of the receiver

withstand voltage

AC1000V 1 minute of all power connection terminals and short circuit protection between the shell

Insulation resistance

more than 20MΩ

Vibration resistance

Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions

Shock resistance

Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions

Material

COVER:ABS

Degree of protection

IP65

cable

Φ 3 *3-core PVC cable 2m

Φ 3 *4-core PVC cable 2m


Weight

Approx.50g

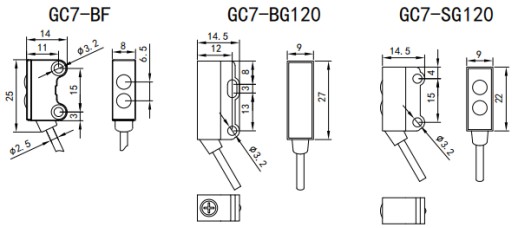

Dimensions
