Cylindrical laser sensor

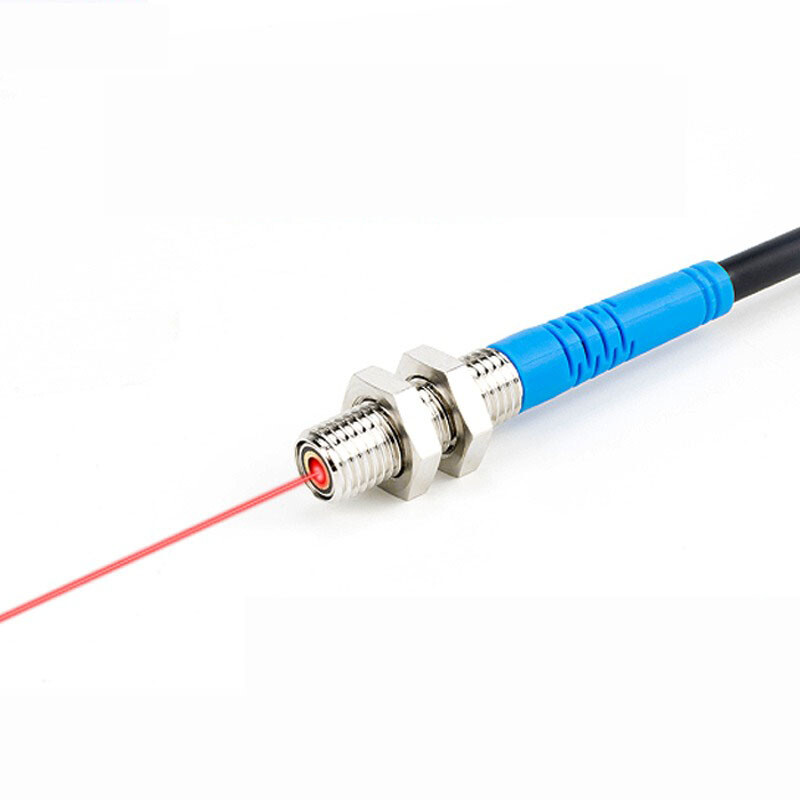

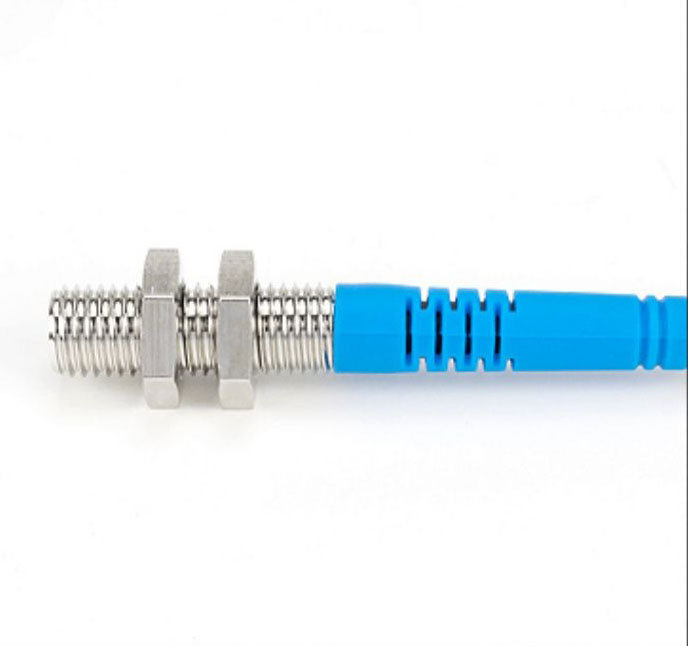

M8 Laser sensor
Juncheng Intelligence is a high-tech enterprise focusing on sensor research and development, production and sales, located in Goldman Sachs Science Park, Dongguan City, Guangdong Province. After years of development and accumulation, we have become an influential intelligent sensor solution provider, with color sensors, laser sensors, photoelectric sensors, ultrasonic sensors, fiber optic sensors, safety light curtains, encoders and other products as the main products. The products are widely used in food packaging, paper printing, cosmetics, pharmaceutical industry, electronic semiconductors, woodworking machinery, warehousing and logistics, automobiles, steel and other industries.
Since its establishment, Juncheng Intelligence has maintained long-term strategic cooperation with many scientific research institutes and has accumulated a group of experienced R&D personnel to create various sensor solutions for industrial automation. From product development to after-sales service, Juncheng has always been committed to using rich industry experience and professional technology to create the best sensor products and solutions.
Contact Us

MAIN PRODUCTS


Output

Model

NPN

LM8-F150NO

LM8-F150NC

LM8-F200NO

LM8-F200NC

LM8-T50MNO

LM8-T50MNC

PNP

LM8-F150PO

LM8-F150PC

LM8-F200PO

LM8-F200PC

LM8-T50MPO

LM8-T50MPC

light source

Red laser spot

Testing method

Diffuse reflection

Bend Shooting

Sensing Distance

150mm

200mm

50m

Supply voltage

10～30VDC±10%

Consumption Current

<150mA

Output state

NO

NC

NO

NC

NO

NC

Protection circuit

Short circuit, anti -polarity, overcurrent

Reaction time

Below 5ms

indicator light

Yellow LED (lights up when illuminated)

Ambient temperature range

Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation)

Ambient humidity range

Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)

Ambient illumination

1,000 lx max. with fluorescent light on the surface of the receiver

withstand voltage

AC1000V 1 minute of all power connection terminals and short circuit protection between the shell

Insulation resistance

more than 20MΩ

Vibration resistance

Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions

Shock resistance

Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions

Material

Cover：304 stainless steel

Degree of protection

IP65

cable

Φ4*3-core PVC cable 2m

Weight

Approx.55g

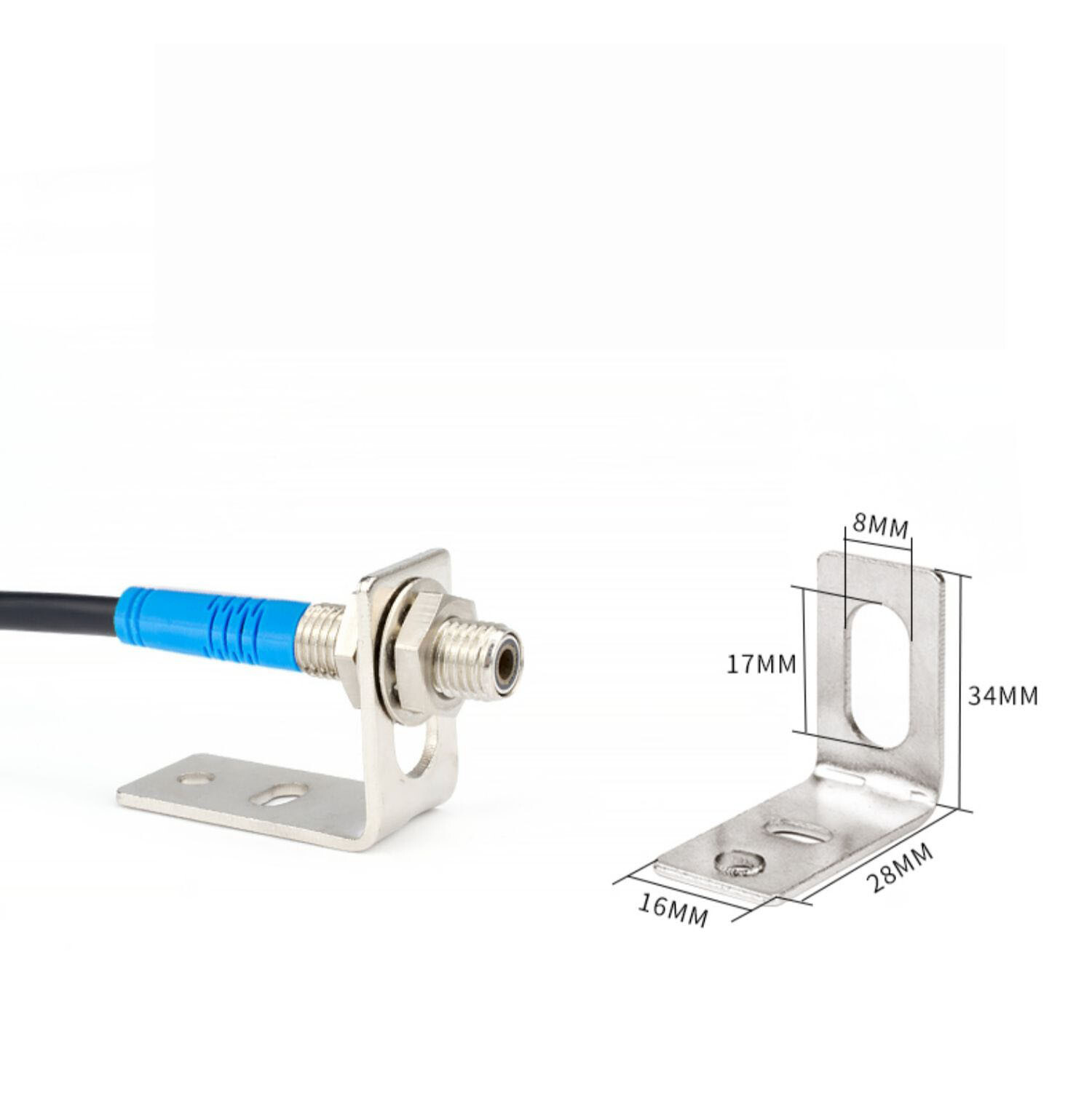

Dimensions





Output circuit
