Ultra small proximity sensor

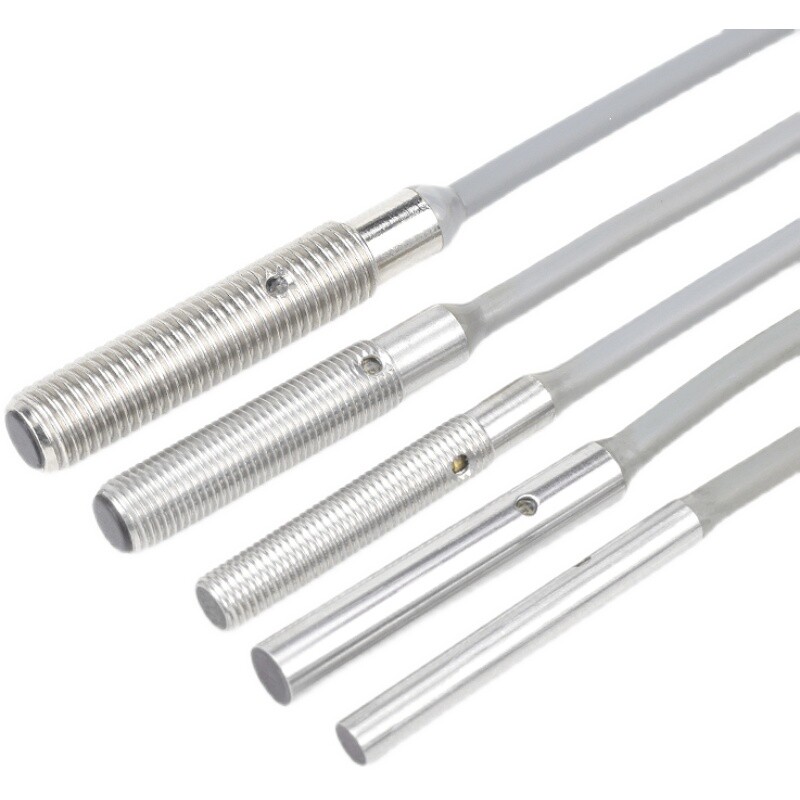

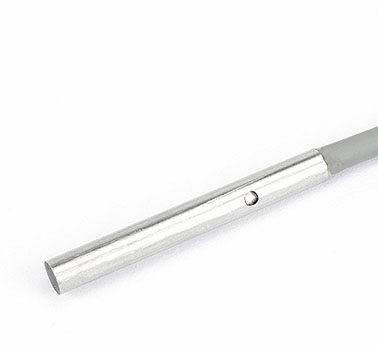

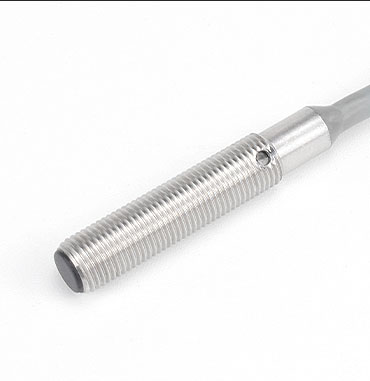

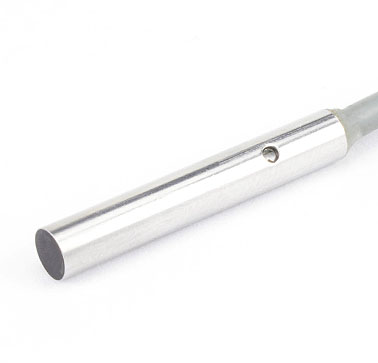

DMB Ultra small proximity sensor
Juncheng Intelligence is a high-tech enterprise focusing on sensor research and development, production and sales, located in Goldman Sachs Science Park, Dongguan City, Guangdong Province. After years of development and accumulation, we have become an influential intelligent sensor solution provider, with color sensors, laser sensors, photoelectric sensors, ultrasonic sensors, fiber optic sensors, safety light curtains, encoders and other products as the main products. The products are widely used in food packaging, paper printing, cosmetics, pharmaceutical industry, electronic semiconductors, woodworking machinery, warehousing and logistics, automobiles, steel and other industries.
Since its establishment, Juncheng Intelligence has maintained long-term strategic cooperation with many scientific research institutes and has accumulated a group of experienced R&D personnel to create various sensor solutions for industrial automation. From product development to after-sales service, Juncheng has always been committed to using rich industry experience and professional technology to create the best sensor products and solutions.
Contact Us

MAIN PRODUCTS


Model

Sensing range

Installation

Shell size D

Output method

Output status

L

V

Connection

DMB03-01S-BNO

1

Flush

Φ3

NPN

NO

25

18

Φ2.5

DMB03-01S-BNC

NC

DMB03-01S-BPO

PNP

NO

DMB03-01S-BPC

NC

DMB04-1.5S-BNO

1.5

Φ4

NPN

NO

DMB04-1.5S-BNC

NC

DMB04-1.5S-BPO

PNP

NO

DMB04-1.5S-BPC

NC

DMB05-1.5S-BNO

M5×0.5

NPN

NO

DMB05-1.5S-BNC

NC

DMB05-1.5S-BPO

PNP

NO

DMB05-1.5S-BPC

NC

DMB06-1.5S-BNO

M6×0.75

NPN

NO

30

DMB06-1.5S-BNC

NC

DMB06-1.5S-BPO

PNP

NO

DMB06-1.5S-BPC

NC

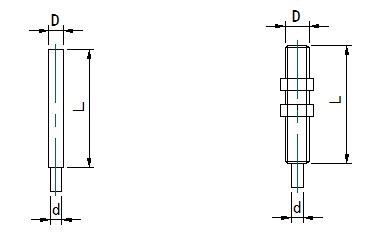

Dimensions









Performance

Installation

Flush

Sensing range

1mm

1.5mm

Supply voltage

DC10-30V

Ripple

<10%

Max.Load Current

100mA

No Load Current

<10mA

Leakage Current

<0.01mA

Voltage Drop

<1.5V

Switching Frequency

2KHz

Response Time

0.1ms

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

<3.0%(Sr)

Protection Category

IP67

Operating Temperature

-25°C- +70°C

Temperature Drift

<10%(Sr)

Housing Material

Stainless steel

Material Active Face

PA66
