Ultra short inductive proximity sensor

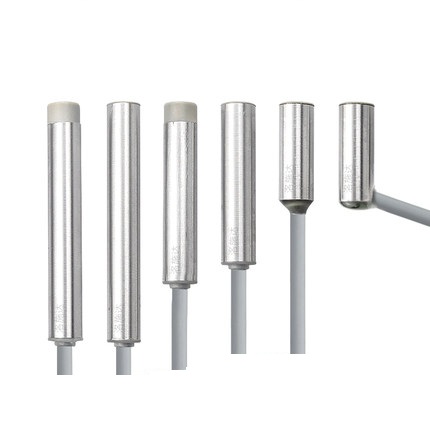

DMC6.5 Ultra short inductive proximity sensor
Juncheng Intelligence is a high-tech enterprise focusing on sensor research and development, production and sales, located in Goldman Sachs Science Park, Dongguan City, Guangdong Province. After years of development and accumulation, we have become an influential intelligent sensor solution provider, with color sensors, laser sensors, photoelectric sensors, ultrasonic sensors, fiber optic sensors, safety light curtains, encoders and other products as the main products. The products are widely used in food packaging, paper printing, cosmetics, pharmaceutical industry, electronic semiconductors, woodworking machinery, warehousing and logistics, automobiles, steel and other industries.
Since its establishment, Juncheng Intelligence has maintained long-term strategic cooperation with many scientific research institutes and has accumulated a group of experienced R&D personnel to create various sensor solutions for industrial automation. From product development to after-sales service, Juncheng has always been committed to using rich industry experience and professional technology to create the best sensor products and solutions.
Contact Us

MAIN PRODUCTS


Model

Sensing range

Installation

Thread size

Output method

Output status

L

V

Connection

DMC6.5-01S-BNO

1

flush

Φ6.5

NPN

NO

18

-

Φ3*3-core PVC cable 2m

DMC6.5-01S-BNC

NC

DMC6.5-01S-BPO

PNP

NO

DMC6.5-01S-BPC

NC

DMC6.5-02S-BNO

2

NPN

NO

DMC6.5-02S-BNC

NC

DMC6.5-02S-BPO

PNP

NO

DMC6.5-02S-BPC

NC

DMC6.5-02S-NNO

non-flush

NPN

NO

22

4

DMC6.5-02S-NNC

NC

DMC6.5-02S-NPO

PNP

NO

DMC6.5-02S-NPC

NC

DMC6.5-02S-BNOY

2

flush


NPN

NO


-

DMC6.5-02S-BNCY

NC

DMC6.5-02S-BPOY

PNP

NO

DMC6.5-02S-BPCY

NC

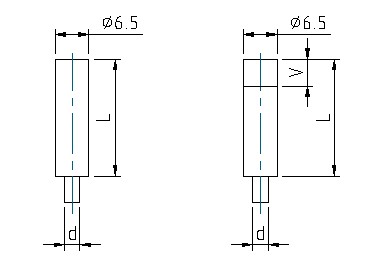

Dimensions









Performance

Installation

flush

non-flush

Sensing range

1

2

Supply voltage

DC10-30V

Ripple

<10%

Max.Load Current

150mA

No Load Current

<10mA

Leakage Current

<0.01mA

Voltage Drop

<1.5V

Switching Frequency

2kHz

1kHz

2kHz

Response Time

0.1ms

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

<3.0%(Sr)

Protection Category

IP67

Operating Temperature

-25°C- +70°C

Temperature Drift

<10%(Sr)

Housing Material

stainless steel

Material Active Face

PBT

Overload protection current

180mA
