Standard inductive proximity sensor

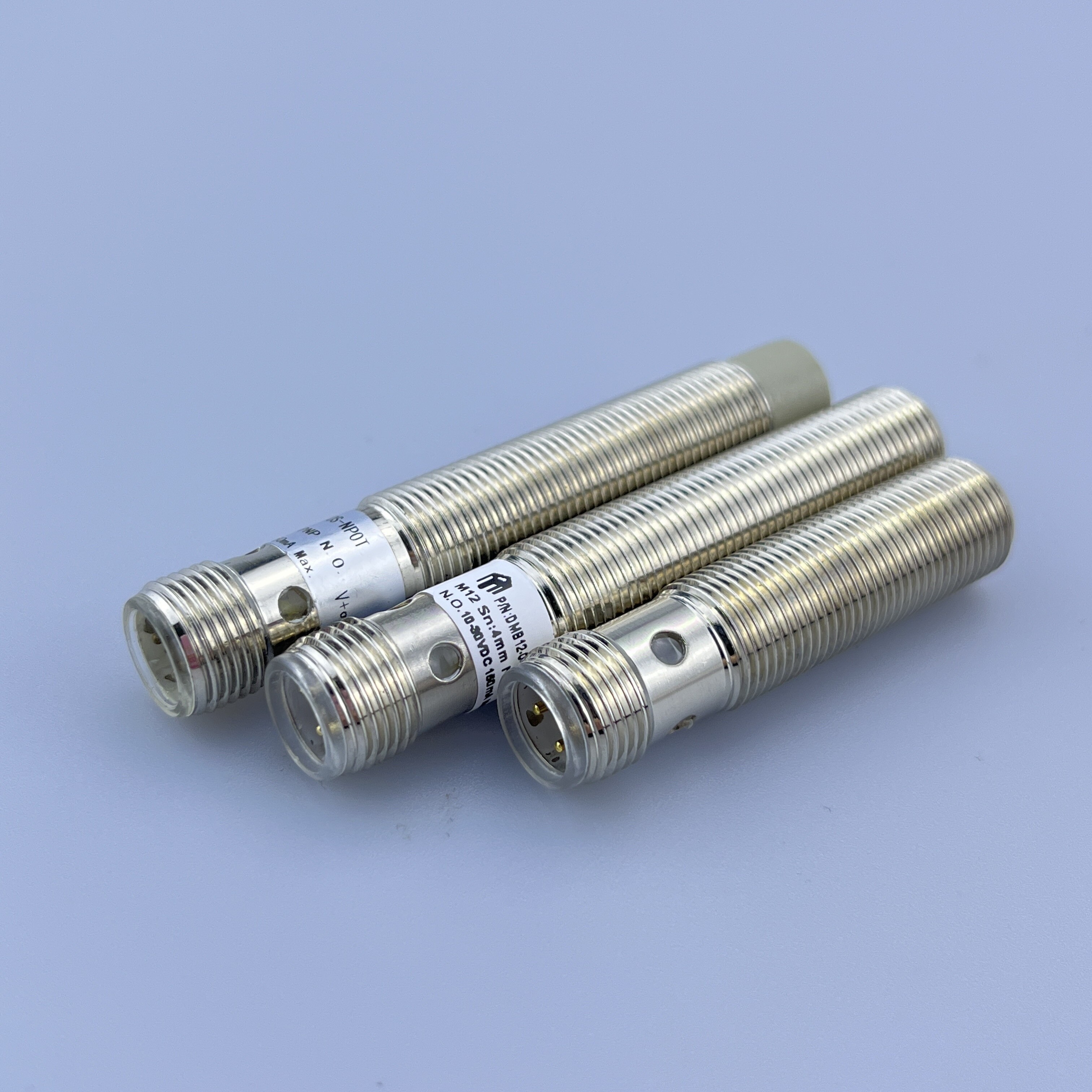

DM18 plug-in inductive proximity sensor
Juncheng Intelligence is a high-tech enterprise focusing on sensor research and development, production and sales, located in Goldman Sachs Science Park, Dongguan City, Guangdong Province. After years of development and accumulation, we have become an influential intelligent sensor solution provider, with color sensors, laser sensors, photoelectric sensors, ultrasonic sensors, fiber optic sensors, safety light curtains, encoders and other products as the main products. The products are widely used in food packaging, paper printing, cosmetics, pharmaceutical industry, electronic semiconductors, woodworking machinery, warehousing and logistics, automobiles, steel and other industries.
Since its establishment, Juncheng Intelligence has maintained long-term strategic cooperation with many scientific research institutes and has accumulated a group of experienced R&D personnel to create various sensor solutions for industrial automation. From product development to after-sales service, Juncheng has always been committed to using rich industry experience and professional technology to create the best sensor products and solutions.
Contact Us

MAIN PRODUCTS


Model

Sensing range

Installation

Thread size

Output method

Output status

L

V

Connection

DM18-05U-BNOT

5

flush

M12×1

NPN

NO

80

-

M12 4-pin

DM18-05U-BNCT

NC

DM18-05U-BPOT

PNP

NO

DM18-05U-BPCT

NC

DM18-08U-BNOT

8

NPN

NO

DM18-08U-BNCT

NC

DM18-08U-BPOT

PNP

NO

DM18-08U-BPCT

NC

DM18-12U-BNOT

12

NPN

NO

DM18-12U-BNCT

NC

DM18-12U-BPOT

PNP

NO

DM18-12U-BPCT

NC

DM18-08U-NNOT

8

non-flush

NPN

NO

8

DM18-08U-NNCT

NC

DM18-08U-NPOT

PNP

NO

DM18-08U-NPCT

NC

DM18-16U-NNOT

16

NPN

NO

DM18-16U-NNCT

NC

DM18-16U-NPOT

PNP

NO

DM18-16U-NPCT

NC

DM18-20U-NNOT

20

NPN

NO

DM18-20U-NNCT

NC

DM18-20U-NPOT

PNP

NO

DM18-20U-NPCT

NC

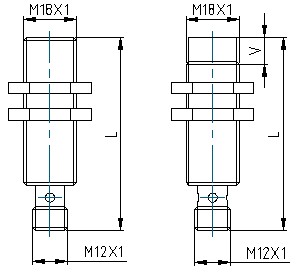

Dimensions






Performance

Installation

flush

non-flush

Sensing range

5

8

12

8

16

20

Supply voltage

DC10-30V

Ripple

<10%

Max.Load Current

150mA

No Load Current

<10mA

Leakage Current

<0.01mA

Voltage Drop

<1.5V

Switching Frequency

1kHz

500Hz

300Hz

500Hz

150Hz

100Hz

Response Time

0.5ms

0.5ms

1ms

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

<3.0%(Sr)

Protection Category

IP67

Operating Temperature

-25°C- +70°C

Temperature Drift

<10%(Sr)

Housing Material

Brass nickel plated

Material Active Face

PBT

Overload Trip Point

180mA
