Square inductor proximity sensor

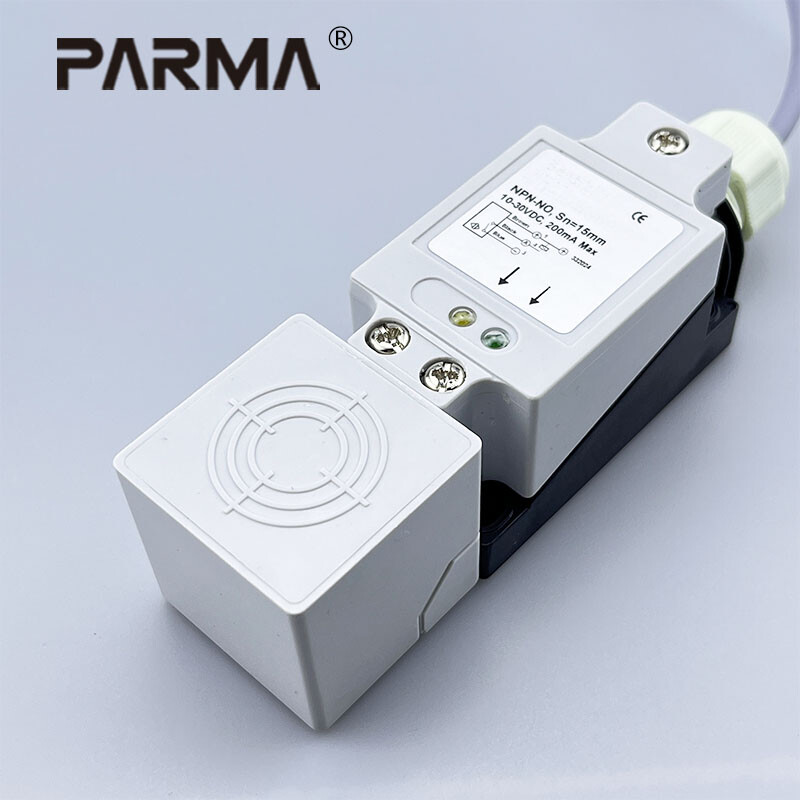

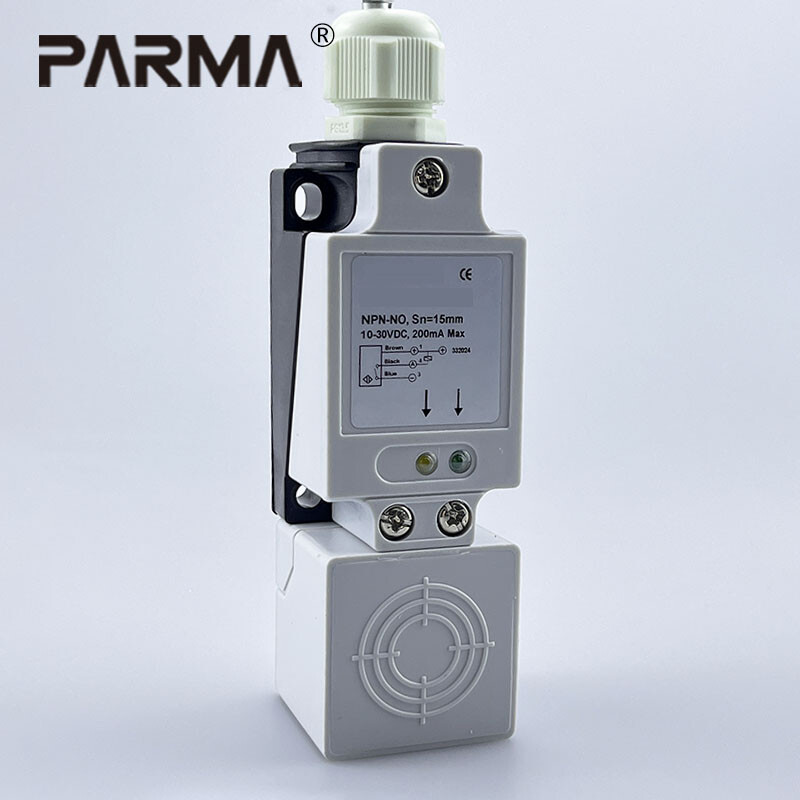

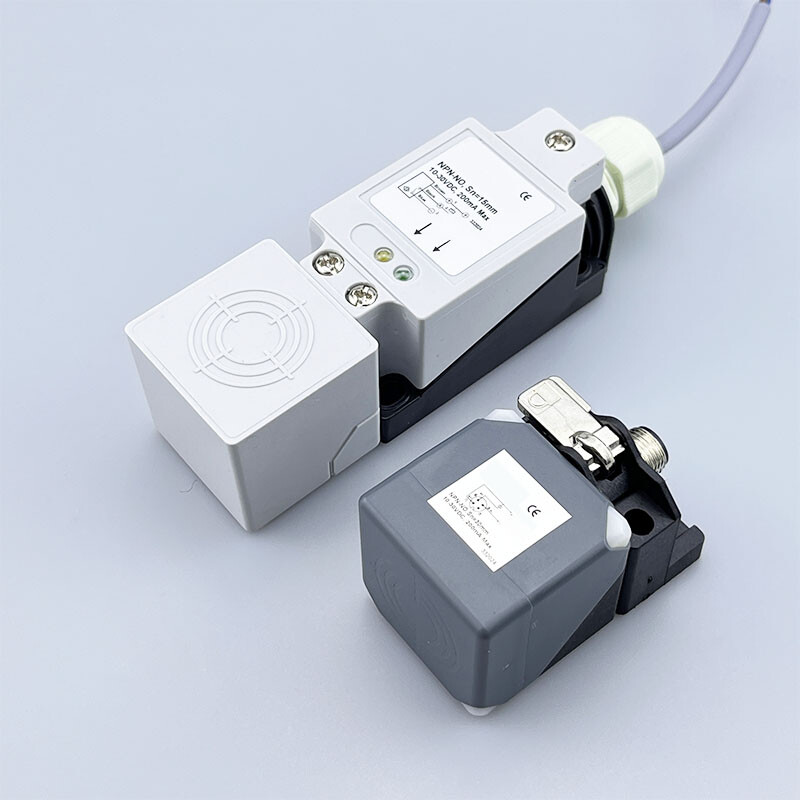

Q40 Inductive proximity sensor
Juncheng Intelligence is a high-tech enterprise focusing on sensor research and development, production and sales, located in Goldman Sachs Science Park, Dongguan City, Guangdong Province. After years of development and accumulation, we have become an influential intelligent sensor solution provider, with color sensors, laser sensors, photoelectric sensors, ultrasonic sensors, fiber optic sensors, safety light curtains, encoders and other products as the main products. The products are widely used in food packaging, paper printing, cosmetics, pharmaceutical industry, electronic semiconductors, woodworking machinery, warehousing and logistics, automobiles, steel and other industries.
Since its establishment, Juncheng Intelligence has maintained long-term strategic cooperation with many scientific research institutes and has accumulated a group of experienced R&D personnel to create various sensor solutions for industrial automation. From product development to after-sales service, Juncheng has always been committed to using rich industry experience and professional technology to create the best sensor products and solutions.
Contact Us

MAIN PRODUCTS

Model

Sensing range

Installation

Shell size

Output method

Output status

Connection

Q4015-BNS

15

flush

40×40×118

NPN

NO+NC

PG13.5

Q4015-BPS

15

PNP

NO+NC

PG13.5

Q4020-BNS

20

NPN

NO+NC

PG13.5

Q4020-BPS

20

PNP

NO+NC

PG13.5

Q4025-NNS

25

non-flush

NPN

NO+NC

PG13.5

Q4025-NPS

25

PNP

NO+NC

PG13.5

Q4040-NNS

40

NPN

NO+NC

PG13.5

Q4040-NPS

40

PNP

NO+NC

PG13.5

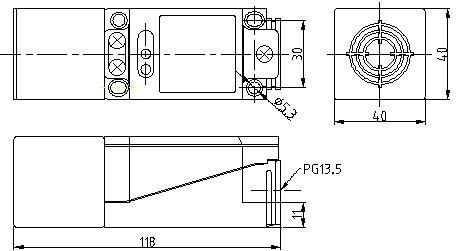

Dimensions









Performance

Installation

flush

non-flush

Sensing range

15

20

25

40

Supply voltage

DC10-30V

Ripple

<10%

Max.Load Current

150mA

No Load Current

<10mA

Leakage Current

<0.01mA

Voltage Drop

<1.5V

Switching Frequency

500Hz

300Hz

300Hz

150Hz

Response Time

0.5ms

1ms

0.5ms

1ms

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

<3.0%(Sr)

<5.0%(Sr)

<3.0%(Sr)

<5.0%(Sr)

Protection Category

IP67

Operating Temperature

-25°C- +70°C

Temperature Drift

<10%(Sr)

Housing Material

ABS

Material Active Face

ABS
