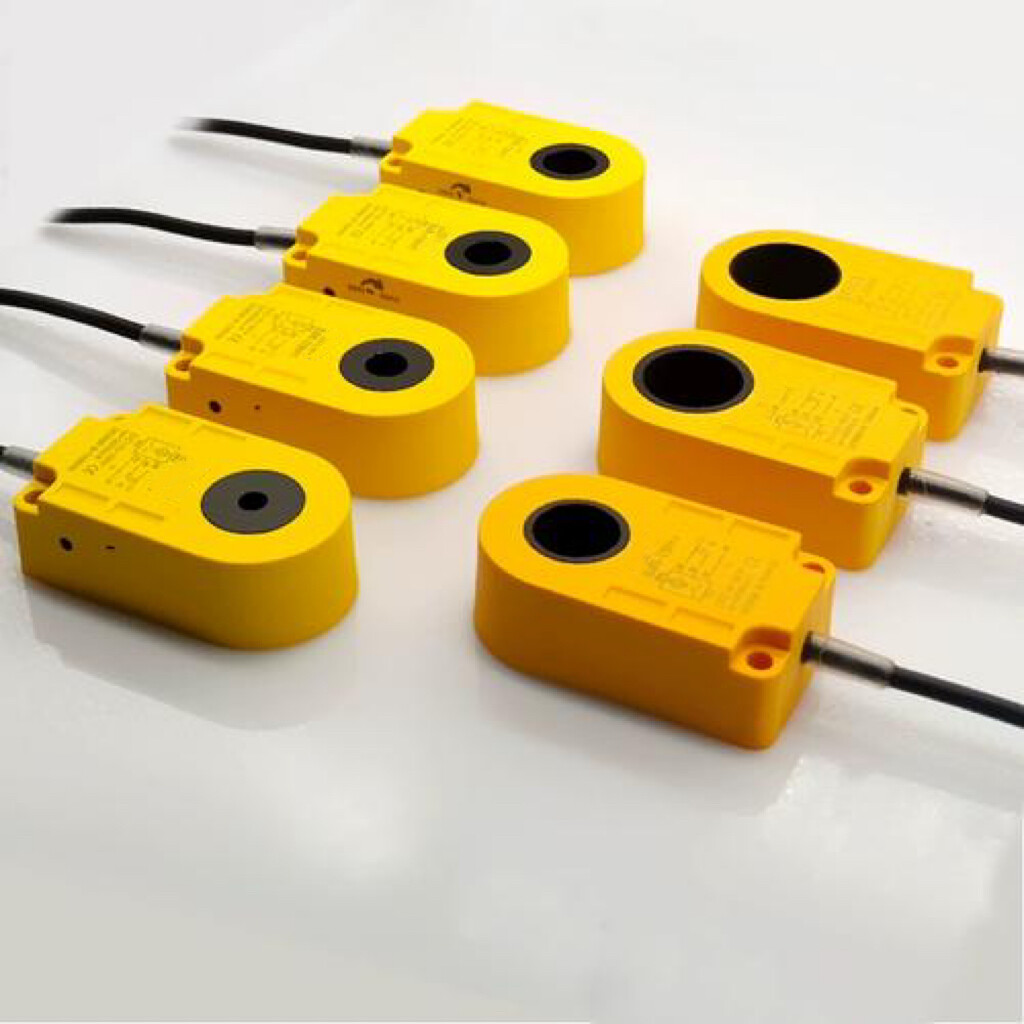

Loop inductance proximity sensor
Proximity Sensor DR Loop Inductance
Juncheng Intelligence is a high-tech enterprise focusing on sensor research and development, production and sales, located in Goldman Sachs Science Park, Dongguan City, Guangdong Province. After years of development and accumulation, we have become an influential intelligent sensor solution provider, with color sensors, laser sensors, photoelectric sensors, ultrasonic sensors, fiber optic sensors, safety light curtains, encoders and other products as the main products. The products are widely used in food packaging, paper printing, cosmetics, pharmaceutical industry, electronic semiconductors, woodworking machinery, warehousing and logistics, automobiles, steel and other industries.
Since its establishment, Juncheng Intelligence has maintained long-term strategic cooperation with many scientific research institutes and has accumulated a group of experienced R&D personnel to create various sensor solutions for industrial automation. From product development to after-sales service, Juncheng has always been committed to using rich industry experience and professional technology to create the best sensor products and solutions.
Contact Us

MAIN PRODUCTS


Model

NPN NO

DR06-NO

DR08-NO

DR10-NO

DR11-NO

DR15-NO

DR19-NO

NPN NC

DR06-NC

DR08-NC

DR10-NC

DR11-NC

DR15-NC

DR19-NC

PNP NO

DR06-PO

DR08-PO

DR10-PO

DR11-PO

DR15-PO

DR19-PO

PNP NC

DR06-PC

DR08-PC

DR10-PC

DR11-PC

DR15-PC

DR19-PC

Inner hole size

6mm

8mm

10mm

12mm

15mm

19mm

Minimum detectable object

0.8mm

1mm

1.5mm

2.5mm

3.5mm

5mm

Detecting objects

Magnetic metal (minimum detectable volume increases for non-magnetic metals)

Switching Frequency

10Hz

Supply voltage

10-30VDC

No Load Current

0.8mA以下

Indicator

Operation indicator: red

Protection circuit

Short circuit, anti -polarity, overcurrent

Ambient temperature range

Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation)

Ambient humidity range

Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)

Protection Category

IP67

Insulation resistance

more than 20MΩ

withstand voltage

AC1000V 1 minute of all power connection terminals and short circuit protection between the shell

Vibration resistance

Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions

Shock resistance

Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions

Connection

Φ4*3-core PVC cable 2m

Housing Material

Housing: PC  Inner Ring: POM

Dimensions




Output circuit
