High temperature resistant inductive proximity sensor

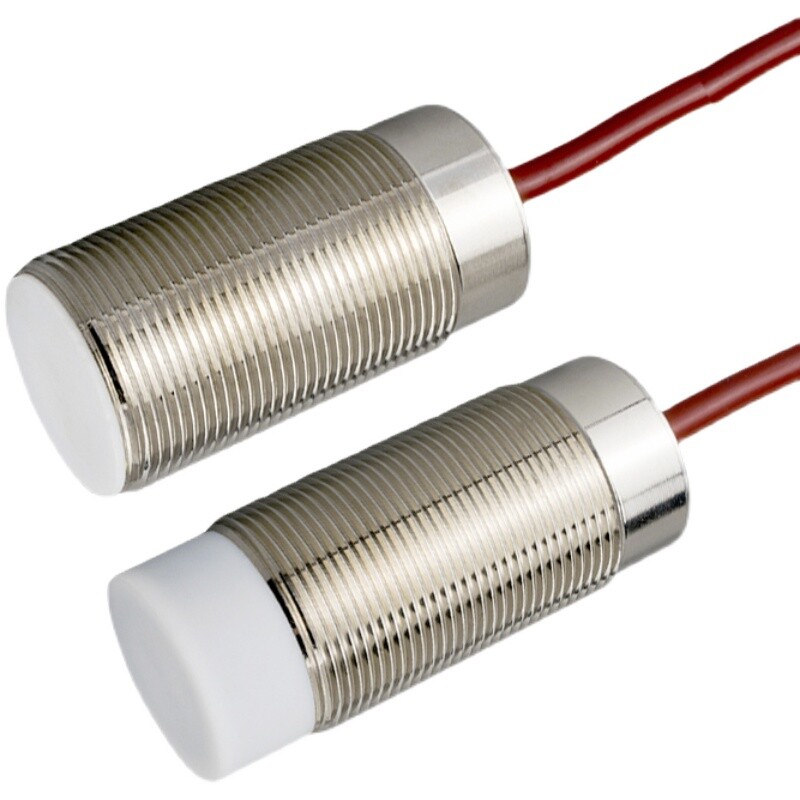

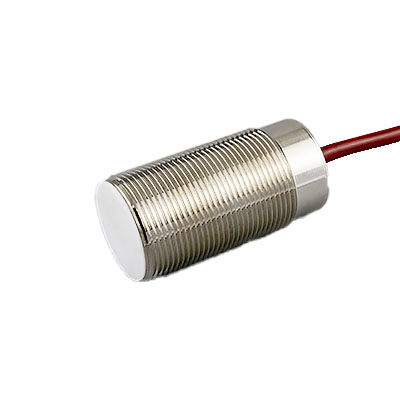

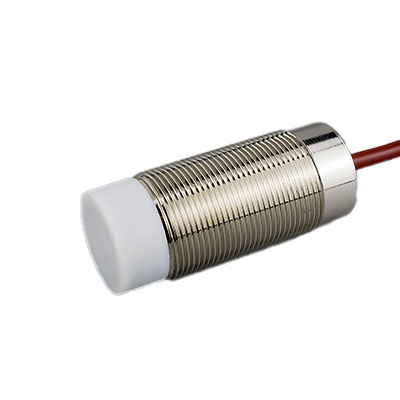

DMT30 High temperature resistant inductive proximity sensor
Juncheng Intelligence is a high-tech enterprise focusing on sensor research and development, production and sales, located in Goldman Sachs Science Park, Dongguan City, Guangdong Province. After years of development and accumulation, we have become an influential intelligent sensor solution provider, with color sensors, laser sensors, photoelectric sensors, ultrasonic sensors, fiber optic sensors, safety light curtains, encoders and other products as the main products. The products are widely used in food packaging, paper printing, cosmetics, pharmaceutical industry, electronic semiconductors, woodworking machinery, warehousing and logistics, automobiles, steel and other industries.
Since its establishment, Juncheng Intelligence has maintained long-term strategic cooperation with many scientific research institutes and has accumulated a group of experienced R&D personnel to create various sensor solutions for industrial automation. From product development to after-sales service, Juncheng has always been committed to using rich industry experience and professional technology to create the best sensor products and solutions.
Contact Us

MAIN PRODUCTS

Model

Sensing range

Installation

Thread size

Output method

Output status

L

V

Connection

DMT30-10U-BNO

10

flush

M30×1.5

NPN

NO

58

-

Φ5*3-core PVC cable 2m

DMT30-10U-BNC

NC

DMT30-10U-BPO

PNP

NO

DMT30-10U-BPC

NC

DMT30-15U-NNO

15

non-flush

NPN

NO

70

12

DMT30-15U-NNC

NC

DMT30-15U-NPO

PNP

NO

DMT30-15U-NPC

NC

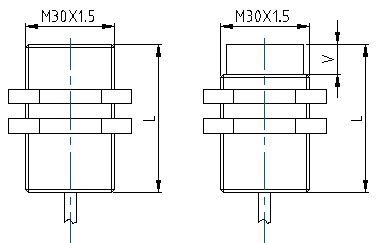

Dimensions



Performance

Installation

flush

non-flush

Sensing range

10mm

15mm

Supply voltage

DC10-30V

Ripple

<10%

Max.Load Current

<10mA

Leakage Current

<0.01mA

Voltage Drop

<1.5V

Switching Frequency

400Hz

300Hz

Response Time

0.5ms

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

<3.0%(Sr)

Protection Category

IP67

Operating Temperature

-25150

Temperature Drift

<10%(Sr)

Housing Material

Brass nickel plated

Material Active Face

Teflon

Connecting wire material

250  high temperature resistant silicone wire
