Analog inductive proximity sensor

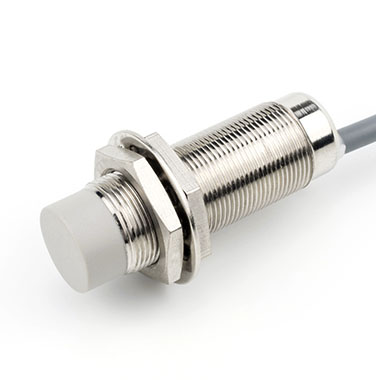

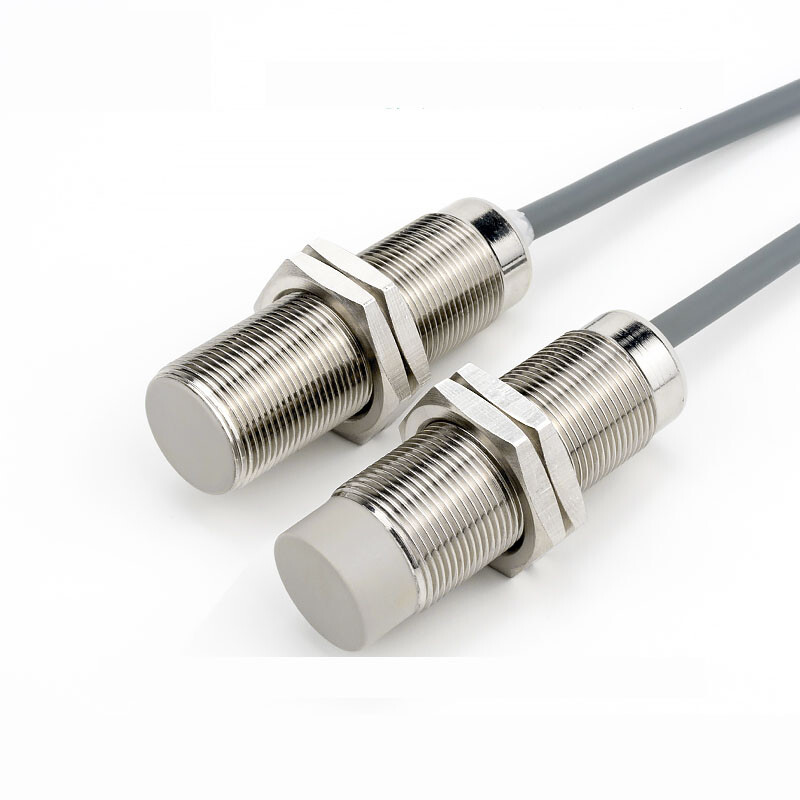

DMA18 Analog inductive proximity sensor
Juncheng Intelligence is a high-tech enterprise focusing on sensor research and development, production and sales, located in Goldman Sachs Science Park, Dongguan City, Guangdong Province. After years of development and accumulation, we have become an influential intelligent sensor solution provider, with color sensors, laser sensors, photoelectric sensors, ultrasonic sensors, fiber optic sensors, safety light curtains, encoders and other products as the main products. The products are widely used in food packaging, paper printing, cosmetics, pharmaceutical industry, electronic semiconductors, woodworking machinery, warehousing and logistics, automobiles, steel and other industries.
Since its establishment, Juncheng Intelligence has maintained long-term strategic cooperation with many scientific research institutes and has accumulated a group of experienced R&D personnel to create various sensor solutions for industrial automation. From product development to after-sales service, Juncheng has always been committed to using rich industry experience and professional technology to create the best sensor products and solutions.
Contact Us

MAIN PRODUCTS

Analog current

Model

Sensing Distance

Installation method

Shell size

Output method

Output status

L

V

Connection

DMA18-05U-BA

1～5mm

flush

M18×1

Analog quantity

4-20mA

55

-

Φ5*3-core PVC cable 2m

DMA18-08U-NA

1～8mm

non-flush

Analog quantity

4-20mA

8

DMA18-05U-BAT

1～5mm

flush

Analog quantity

4-20mA

79

-

M12 4-pin

DMA18-08U-NAT

1～8mm

non-flush

Analog quantity

4-20mA

8

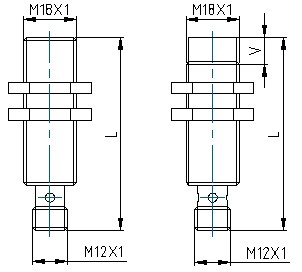

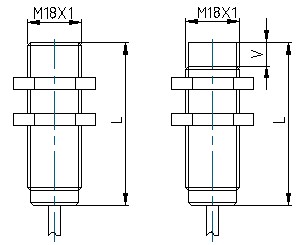

Dimensions









Installation method

flush

non-flush

Sensing Distance

1～5mm

1～8mm

Supply voltage

DC18-30V

Output current

4-20mA/200ΩMax.

Ripple

<10%

No Load Current

<15mA

Leakage Current

<0.01mA

Voltage Drop

<1.5V

Switching Frequency

100Hz

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

0.02mm

Protection Category

IP67

Reverse polarity protection

Yes

Operating Temperature

-25°C～+70°C

Temperature Drift

<10%(Sr)

Housing Material

Brass nickel plated

Material Active Face

PBT



Analog voltage

Model

Sensing Distance

Installation method

Shell size

Output method

Output status

L

V

Connection

DMA18-05U-BA

1～5mm

flush

M18×1

Analog quantity

0-10VDC

55

-

Φ5*3-core PVC cable 2m

DMA18-08U-NA

1～8mm

non-flush

Analog quantity

0-10VDC

8

DMA18-05U-BAT

1～5mm

flush

Analog quantity

0-10VDC

79

-

M12 4-pin

DMA18-08U-NAT

1～8mm

non-flush

Analog quantity

0-10VDC

8

Dimensions









Installation method

flush

non-flush

Sensing Distance

1～5mm

1～8mm

Supply voltage

DC18-30V

Output voltage

0-10VDC/》4.7KΩMax.

Ripple

<10%

No Load Current

<15mA

Leakage Current

<0.01mA

Voltage Drop

<1.5V

Switching Frequency

100Hz

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

0.02mm

Protection Category

IP67

Reverse polarity protection

Yes

Operating Temperature

-25°C～+70°C

Temperature Drift

<10%(Sr)

Housing Material

Brass nickel plated

Material Active Face

PBT
