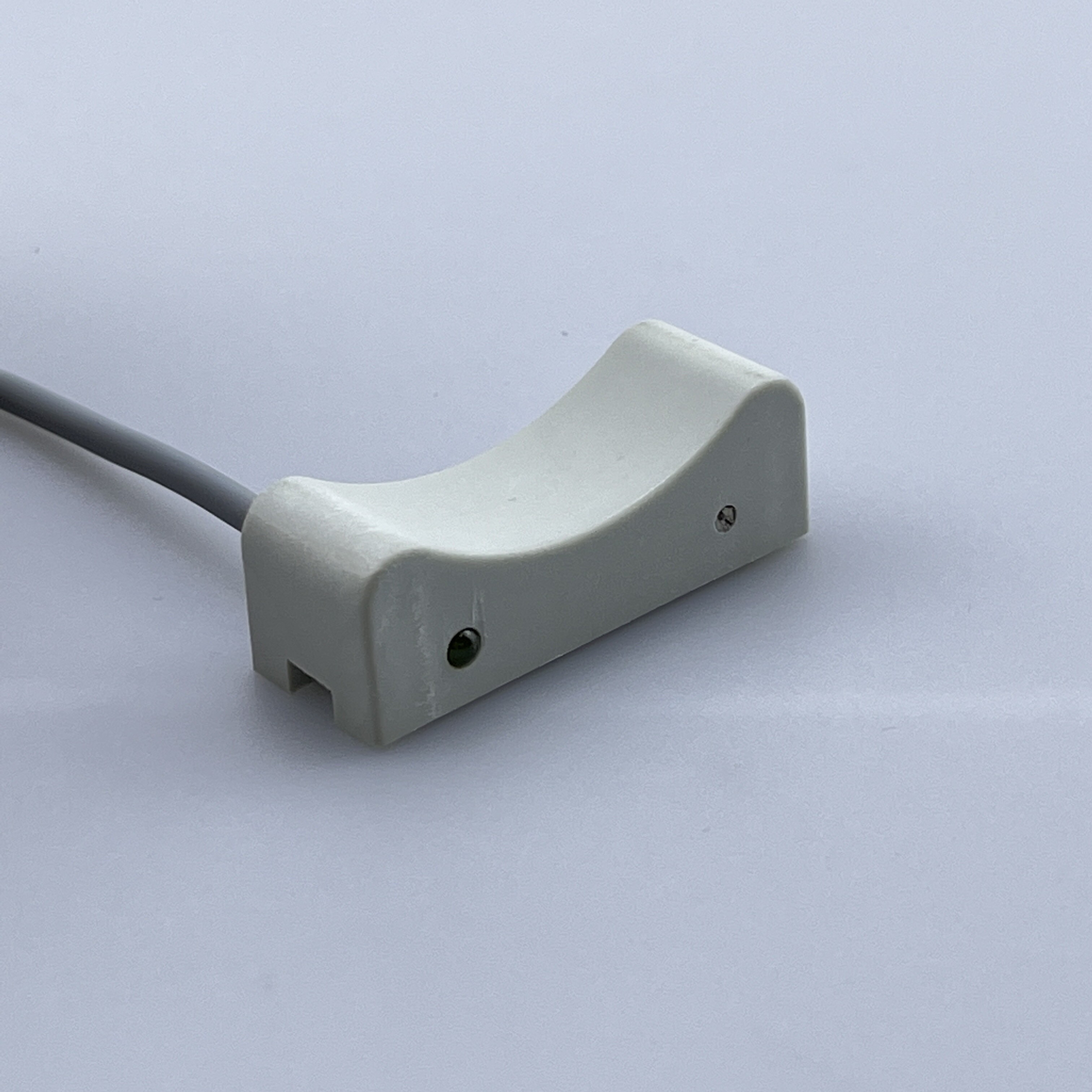

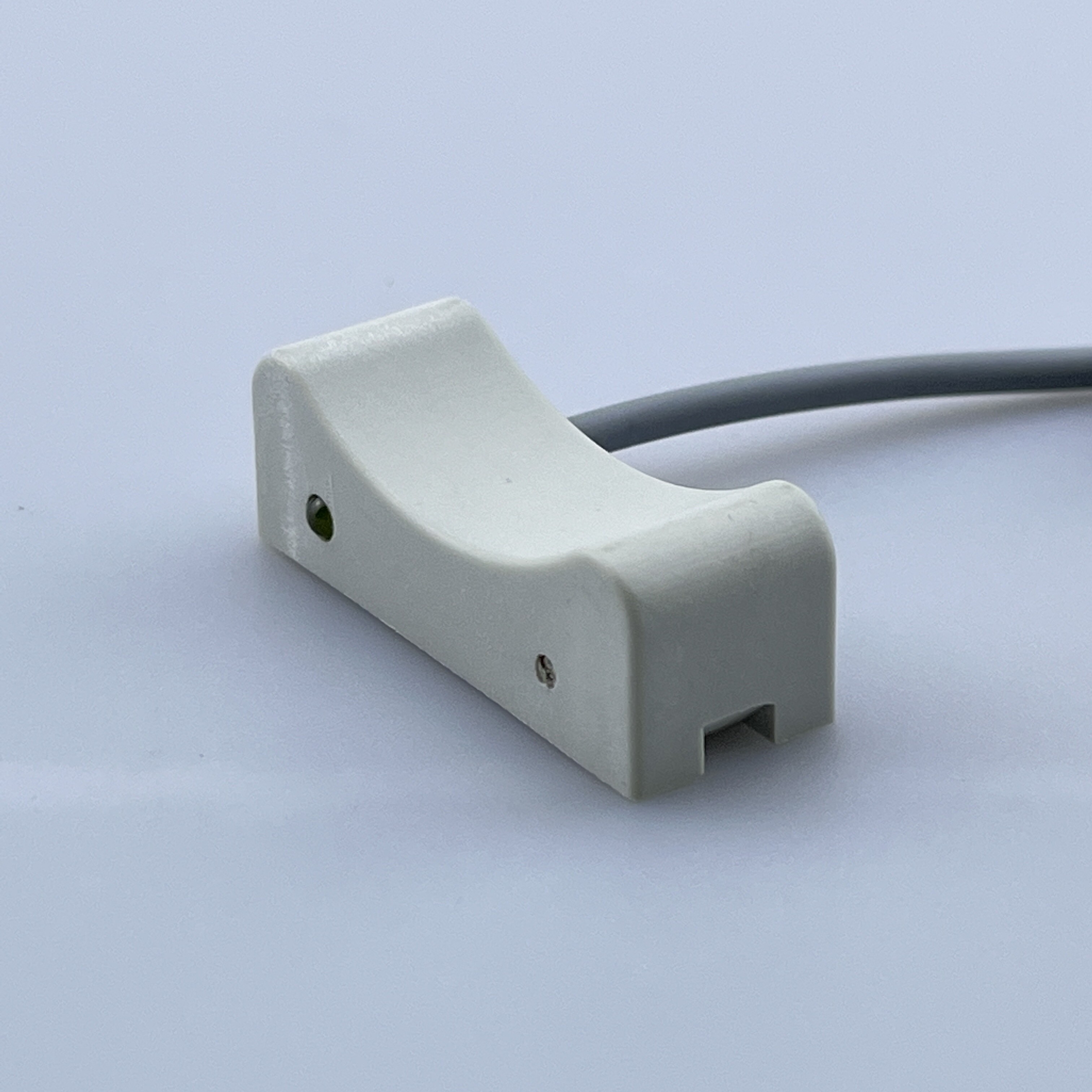

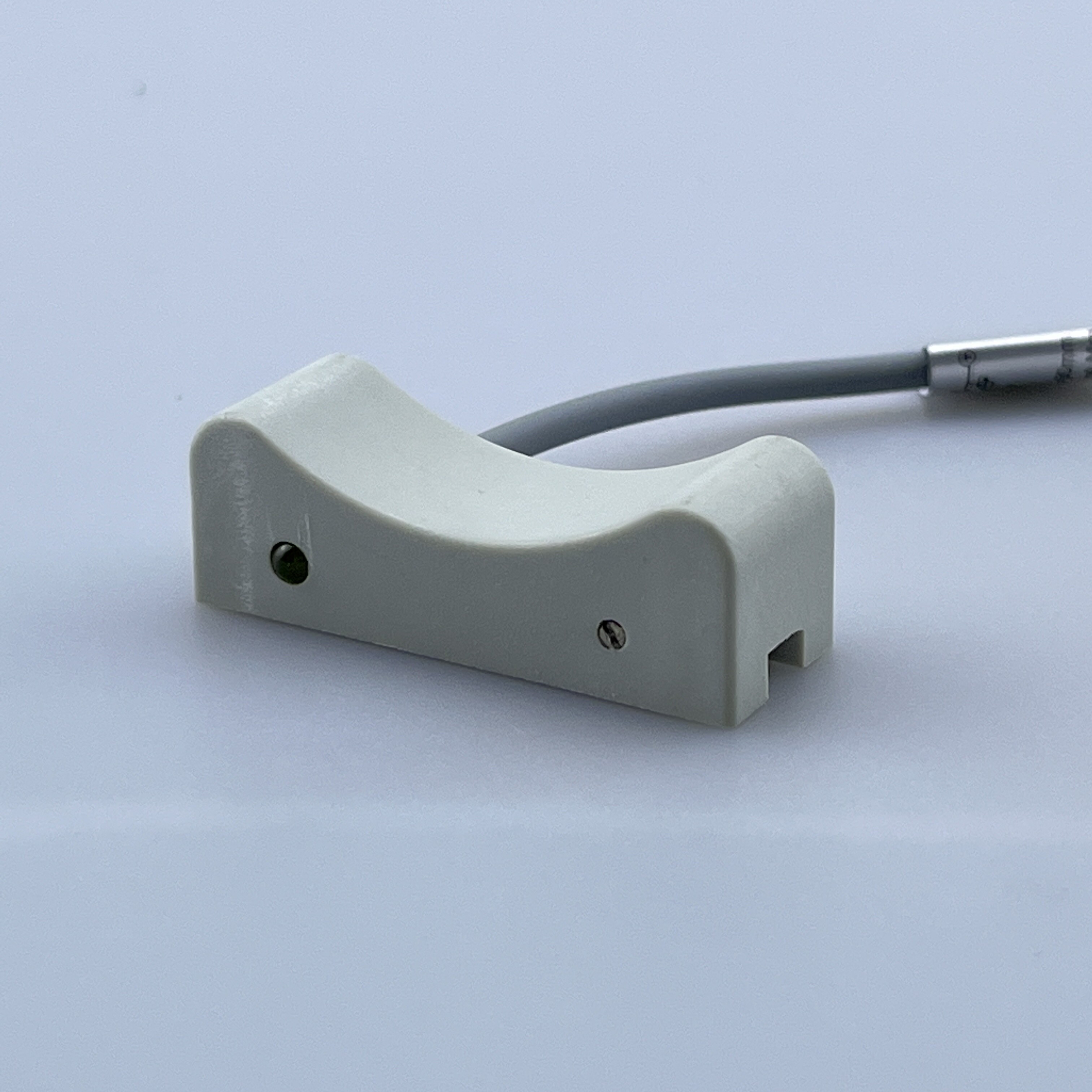

CY40 Pipeline liquid level sensor
Juncheng Intelligence is a high-tech enterprise focusing on sensor research and development, production and sales, located in Goldman Sachs Science Park, Dongguan City, Guangdong Province. After years of development and accumulation, we have become an influential intelligent sensor solution provider, with color sensors, laser sensors, photoelectric sensors, ultrasonic sensors, fiber optic sensors, safety light curtains, encoders and other products as the main products. The products are widely used in food packaging, paper printing, cosmetics, pharmaceutical industry, electronic semiconductors, woodworking machinery, warehousing and logistics, automobiles, steel and other industries.
Since its establishment, Juncheng Intelligence has maintained long-term strategic cooperation with many scientific research institutes and has accumulated a group of experienced R&D personnel to create various sensor solutions for industrial automation. From product development to after-sales service, Juncheng has always been committed to using rich industry experience and professional technology to create the best sensor products and solutions.
Contact Us

MAIN PRODUCTS

Output

Model

NPN

CY40-30P-NNO

CY40-30P-NNC

PNP

CY40-30P-NPO

CY40-30P-NPC

Supply voltage

DC10-30V

Sensing Distance

2-30mm

Applicable pipe diameter

26-50mm

wall thickness

<1mm

Ripple

<10%

Max.Load Current

200mA

No Load Current

<10mA

Overload protection current

220mA

Leakage Current

<0.01mA

Voltage Drop

<1.5V

Switching Frequency

100Hz

Response Time

1ms

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

<1.0%(Sr)

Protection Category

IP67

Operating Temperature

-25°C- +70°C

Temperature Drift

<10%(Sr)

Housing Material

PBT

cable

Φ3*3-core PVC cable 2m

Dimensions

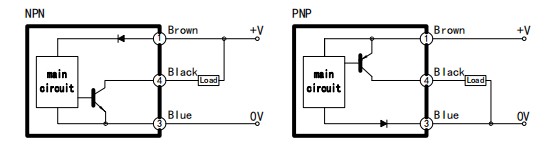

Output circuit
