Leak detection sensor

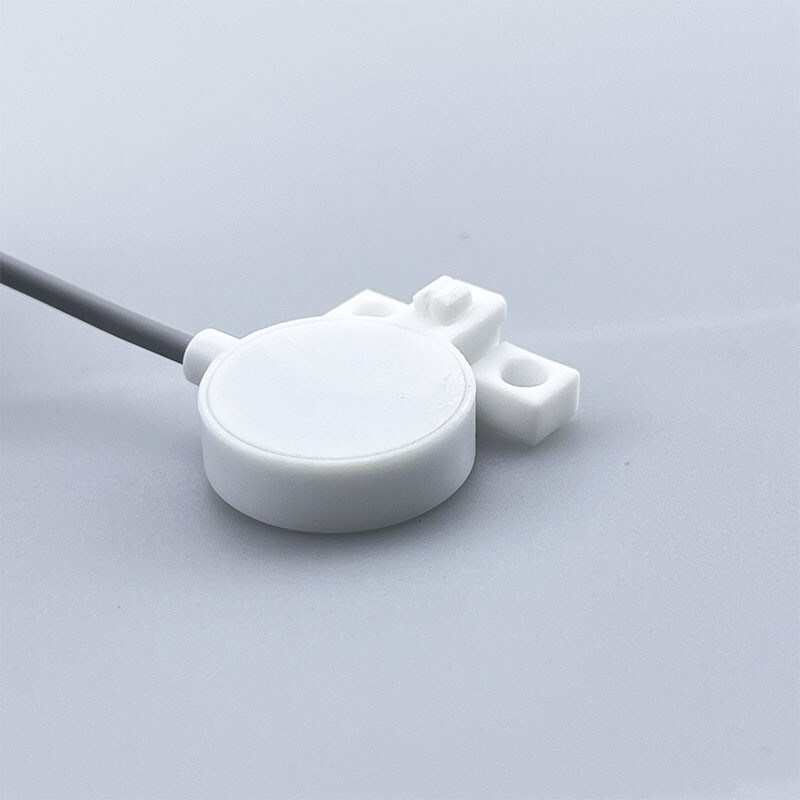

CL25 Capacitive leakage sensor
Juncheng Intelligence is a high-tech enterprise focusing on sensor research and development, production and sales, located in Goldman Sachs Science Park, Dongguan City, Guangdong Province. After years of development and accumulation, we have become an influential intelligent sensor solution provider, with color sensors, laser sensors, photoelectric sensors, ultrasonic sensors, fiber optic sensors, safety light curtains, encoders and other products as the main products. The products are widely used in food packaging, paper printing, cosmetics, pharmaceutical industry, electronic semiconductors, woodworking machinery, warehousing and logistics, automobiles, steel and other industries.
Since its establishment, Juncheng Intelligence has maintained long-term strategic cooperation with many scientific research institutes and has accumulated a group of experienced R&D personnel to create various sensor solutions for industrial automation. From product development to after-sales service, Juncheng has always been committed to using rich industry experience and professional technology to create the best sensor products and solutions.
Contact Us

MAIN PRODUCTS


Output

Model

NPN

CL25-10M-NNO

CL25-10M-NNC

PNP

CL25-10M-NPO

CL25-10M-NPC

Supply voltage

DC10-30V

Installation substrate material

Metal

Ripple

<10%

Max.Load Current

200mA

No Load Current

<10mA

Overload protection current

220mA

Leakage Current

<0.01mA

Voltage Drop

<2V

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

<1.0%(Sr)

Protection Category

IP67

Operating Temperature

-25°C- +70°C

Temperature Drift

<10%(Sr)

Housing Material

PTFE

cable

Φ3*3-core PVC cable 2m

Dimensions

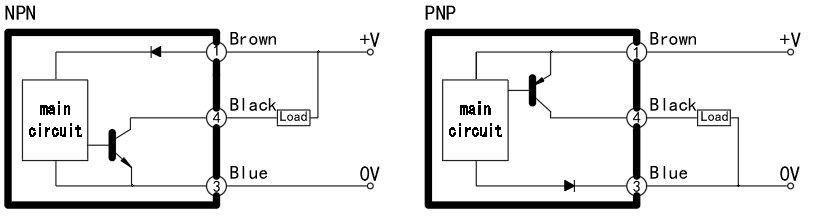

Output circuit



Output

Model

NPN

CL25-10N-NNO

CL25-10N-NNC

PNP

CL25-10N-NPO

CL25-10N-NPC

Supply voltage

DC10-30V

Installation substrate material

Non metallic

Ripple

<10%

Max.Load Current

200mA

No Load Current

<10mA

Overload protection current

220mA

Leakage Current

<0.01mA

Voltage Drop

<2V

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

<1.0%(Sr)

Protection Category

IP67

Operating Temperature

-25°C- +70°C

Temperature Drift

<10%(Sr)

Housing Material

PTFE

cable

Φ3*3-core PVC cable 2m

Dimensions


Output circuit
