NPN

LM3-F30NO

LM3-F30NC

LM3-F40NO

LM3-F40NC

LM3-T20MNO

LM3-T20MNC

PNP

LM3-F30PO

LM3-F30PC

LM3-F40PO

LM3-F40PC

LM3-T20MPO

LM3-T20MPC

light source

Red laser spot

Testing method

Diffuse reflection

Shooting

Sensing Distance

30mm

40mm

20m

Supply voltage

10～30VDC±10%

Consumption Current

<150mA

Output state

NO

NC

NO

NC

NO

NC

Protection circuit

Short circuit, anti -polarity, overcurrent

Reaction time

Below 5ms

indicator light

Yellow LED (lights up when illuminated)

Ambient temperature range

Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation)

Ambient humidity range

Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)

Ambient illumination

1,000 lx max. with fluorescent light on the surface of the receiver

withstand voltage

AC1000V 1 minute of all power connection terminals and short circuit protection between the shell

Insulation resistance

more than 20MΩ

Vibration resistance

Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions

Shock resistance

Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions

Material

Cover：304 stainless steel

Degree of protection

IP65

cable

Φ4*3-core PVC cable 2m

Weight

Approx.40g

Dimensions

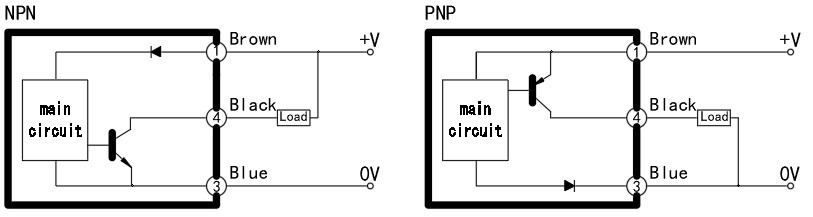

Output circuit
