Output

NPN

PNP

Sensing Distance

10-500mm

Supply voltage

12～24VDC±10%

light source

White LED

Output state

Dark-ON+Light-ON

Reaction time

200μs, 1ms, 10ms, 100ms,500ms

Indicator

Operation indicator: red

Delay function

oFFd, ond, SHOT, and tOFF, delay range: 0 ～ 9999 milliseconds.

Protection circuit

Short circuit, anti -polarity, overcurrent

Ambient temperature range

Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation)

Ambient humidity range

Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)

Ambient illumination

1,000 lx max. with fluorescent light on the surface of the receiver

withstand voltage

AC1000V 1 minute of all power connection terminals and short circuit protection between the shell

Insulation resistance

more than 20MΩ

Vibration resistance

Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions

Shock resistance

Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions

Material

COVER：PBT

Degree of protection

IP65

cable

Φ4*4-core PVC cable 2m

Weight

Approx.100g

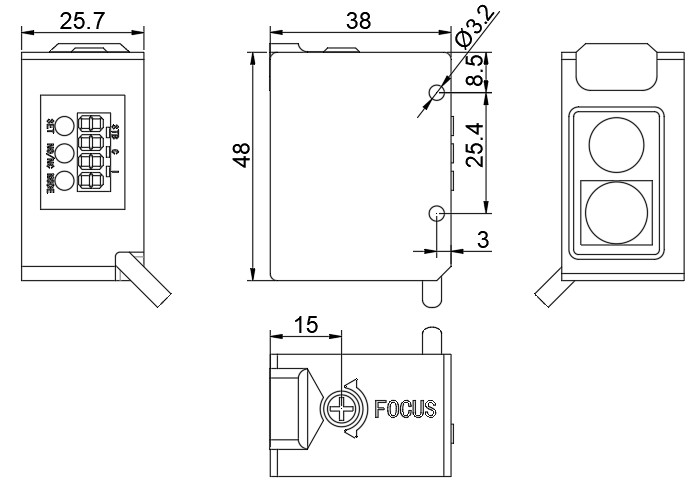

Dimensions

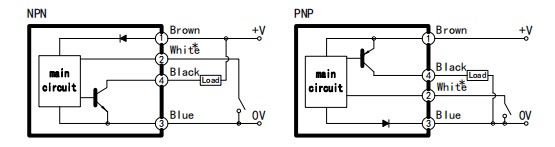

Output circuit
